Description

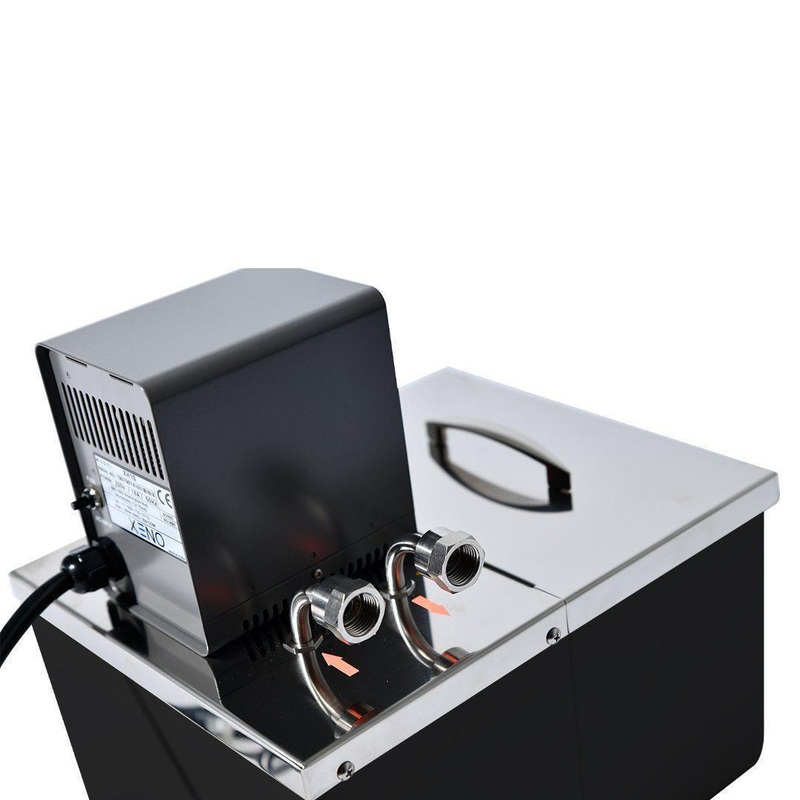

Our premium 4kW Heating Circulator is the perfect solution for your jacketed collection vessel. Consisting of a strong internal pump, 1/2 hose barns, bigger bath, and precise digital control, this device is the industrys leading heating circulator.
Features:
- LARGER MOTOR – Heats 1 L per 7 mins to keep collection vessel hot
- SAFETY- Temperature Cut-off Switch
- WIDE BATH – Quickly warm cold distillate in bath
- HIGH FLOW- 1/2″ barbs to maximize output
Specs:
- Model: XH10
- Temp Range Ambient: +5C to 160C
- Temp Controller Digital: PID Controller
- Heating Capacity: 4000W
- Dimension WxDxH : 220x320x360(mm)
- Bath Open depth: 230x140x150 (mm)
- Net Weight: 5.6 Kg
- Material Internal: Stainless Steel
- Material External: Stainless Steel Plate with steel plate
- Electrical Requirements: 220V, 60Hz, 18A, 1 Phase
- Water volume: 9L/min 0.35bar
