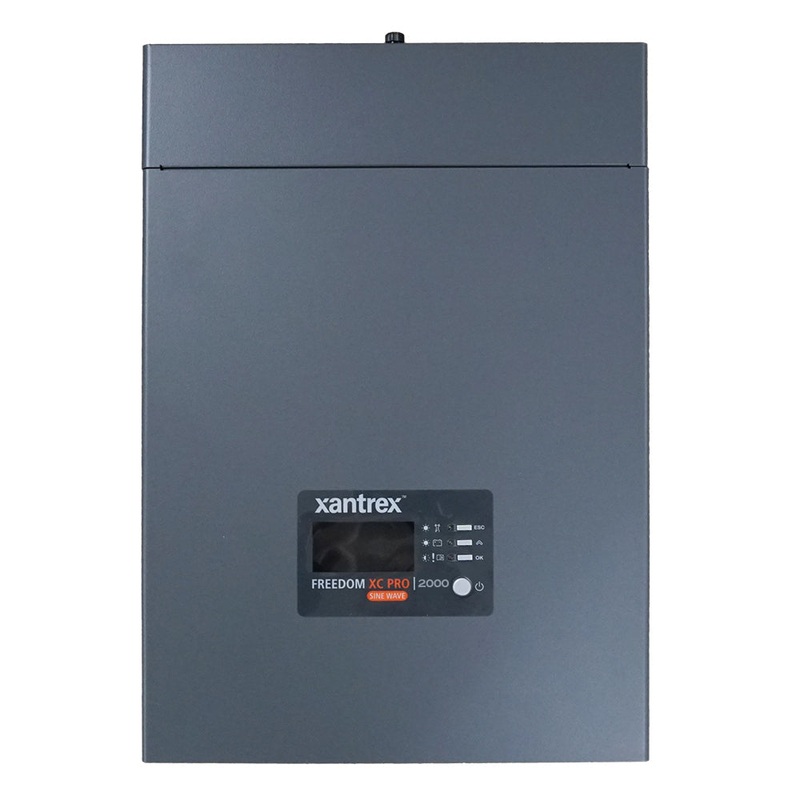

Xantrex Freedom XC Pro 2000 Inverter/Charger – 2000W – 100A – 120V – 12V [818-2010]

Description

Freedom XC Pro 2000 Inverter/Charger – 2000W – 100A – 120V – 12V

2000 Watt pure sine wave inverter with 100 Amp built-in lithium-ion battery charger and transfer switch in a compact, lightweight footprint. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panel

The Freedom XC PRO inverter/charger, supporting RV-C and J1939 protocols, is the most versatile and flexible AC power solution in the market today. It also features a 100 amp (2000W model) / 150 amp (3000W model) battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, light weight package. It cranks out full output in invert or charge mode from -4F (-20C) – 104F (40C) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.

Features:

• Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads
• True Sine Wave AC Power:For operation of sensitive and motor loads
• Ignition Control:Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
• Wide 10-18 VDC Input Range:Ensures inverter operation on high voltage alternators found on many new vehicle chassis
• Built-in 50A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator)
• Power Factor corrected Multi-Stage: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances
• Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V

Specifications:

• Continuous Power: 2000 Watts
• Continuous Current: 16.7 Amps
• Surge Power: 4000 Watts
• Frequency: 60 (or 50) Hz (selectable)
• Output Voltage: 108, 110, 120 Volts AC (selectable)
• Input Voltage: 12 Volts DC nominal
• Safety: ETL listed to CSA 107.1, UL458 (UL458 Marine Supplement with optional drip shield, part number 808-1050)
• Dimensions: 15.4″ x 10.8″ x 4.9″
• Unit weight: 17.1 lbs
• 2 year warranty
