Description
Wyler Levels
Execution:
– Standard version with prismatic measuring base contact faces hand scraped for sensitivity 0.05 mm/m and better according to Standards DIN877 + DIN2276/1
– Options:
– Measuring base with flat contact faces
– Measuring base with magnetic inserts
– Simple adjustment of the zero-point and of rollover errors (twist) of the main vial due to an ingenious adjusting system
– Excellent view on the vial from above and from the side
– The main vial being fixed in a special mounting device the vial is absolutely free from any tensions
– Transversal vial with a sensitivity of 2-5 mm/m for easier handling of the level when measuring on horizontal shafts
– The prismatic bases are suitable for shaft diameters

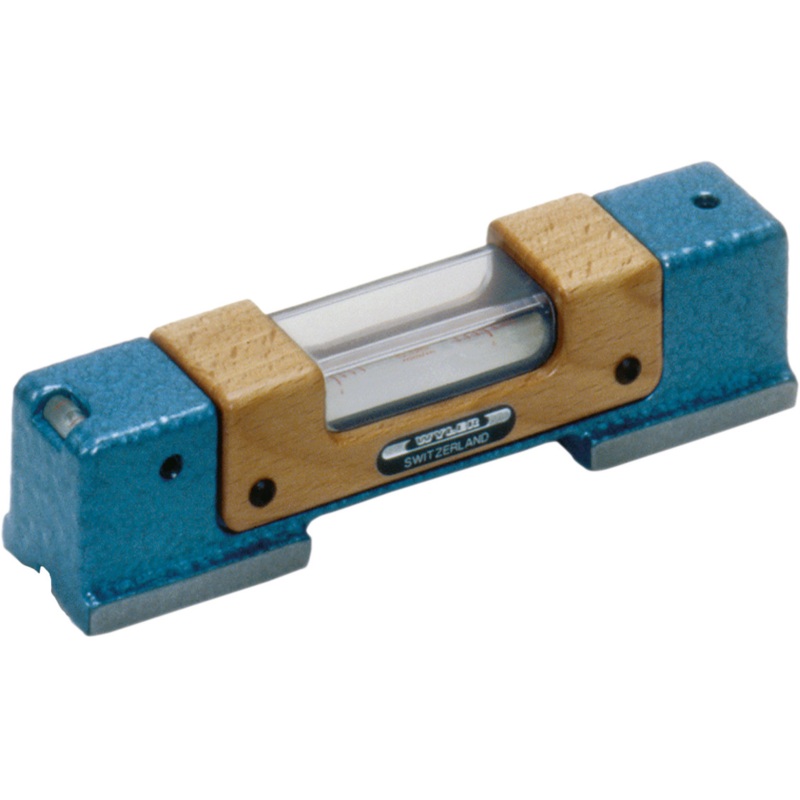

Wyler 155S300-113-020
Wyler Precision Engineers Level Dimensions : 300 x 50 x H:51mm
Accuracy Inch : .0002″/10″
Accuracy metric : .02mm/m
Angular : 4 seconds,
Bowers 60-6272
