Wyler 155S150-113-020 Wyler Precision Engineers Level Dimensions : 150 x 35 x 38mm Accuracy Inch : .0002/10 Accuracy metric : .02mm/m Angular : 4 seconds, 60-6257

Description

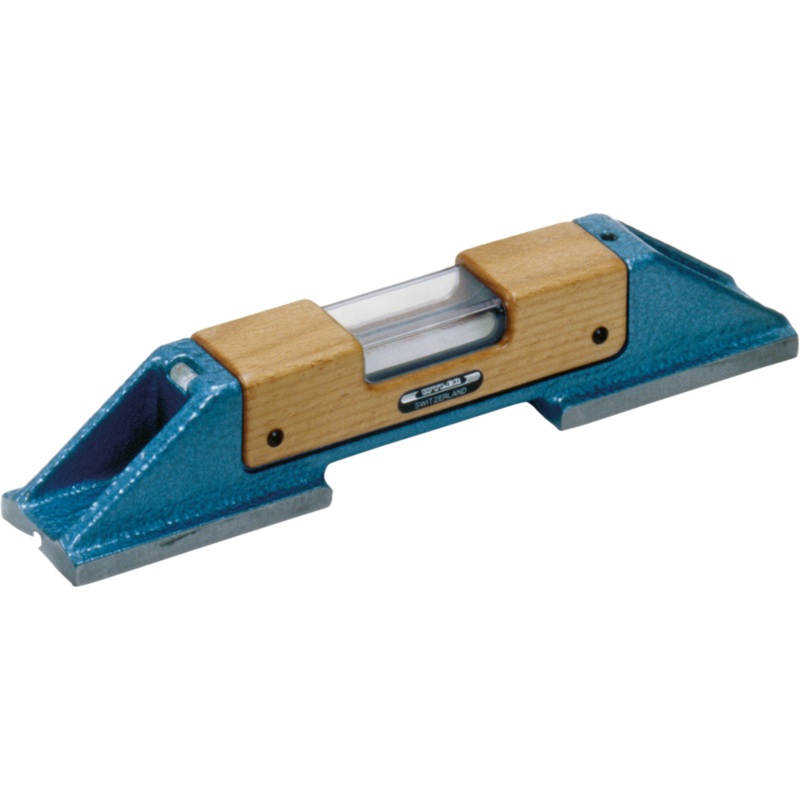

WYLER HORIZONTAL SPIRIT LEVEL NO 55S

The Horizontal Spirit Level 55 is suitable for measurements on horizontal surfaces and shafts. Standard version with prismatic measuring base, contact faces hand scraped for sensitivity 0.05 mm/m and better, according to Standards DIN877 + DIN2276/1. With a prismatic base for checking horizontal surfaces, planes and cylindrical. Magnetic inserts are available.

View Wyler-level brochure

OPTIONS:

• Measuring base with flat contact faces
• Measuring base with magnetic inserts
• Simple adjustment of the zero-point and of rollover errors (twist) of the main vial, due to an ingenious adjusting system
• Excellent view on the vial from above and from the side
• Transversal vial with a sensitivity of 2-5 mm/m for easier handling of the level when measuring on horizontal shafts
• The prismatic bases are suitable for shaft diameters 17 to 160 mm, depending on the dimensions / Details see specifications
• Wooden handle eliminates the transfer and influence of body temperature
• Packed in a wooden storage case

Brand

Wyler

Resolution

0.02mm

Model

Spirit Level

Display

Mechanical (Analogue)

MPN

Bowers 60-6257

Wyler 155S150-113-020

GTIN

5051102063658
