Victron Lynx Shunt VE. Can [LYN040102100]

Description

Lynx Shunt VE. Can

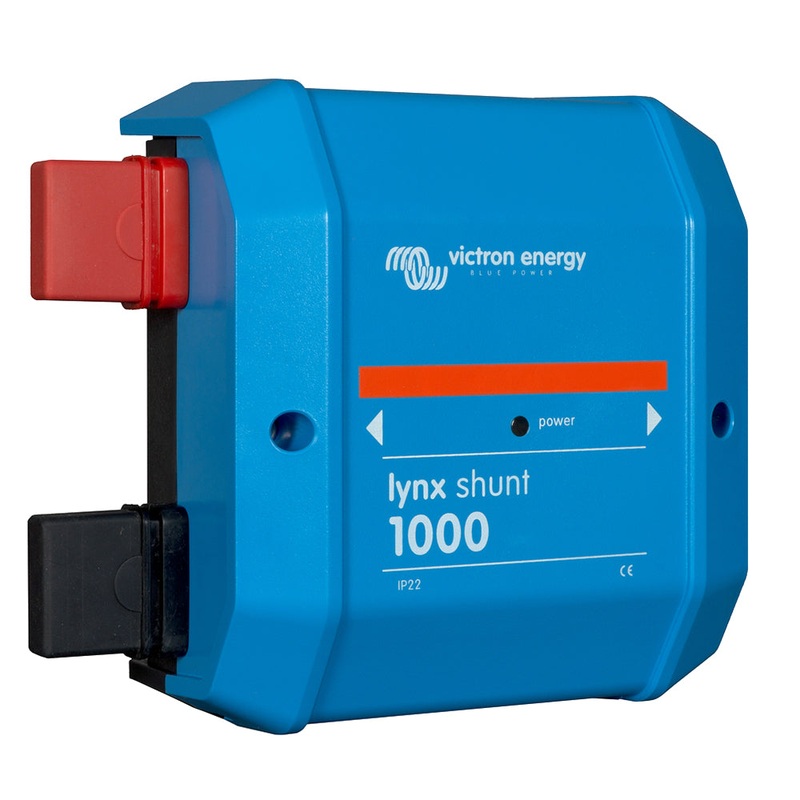

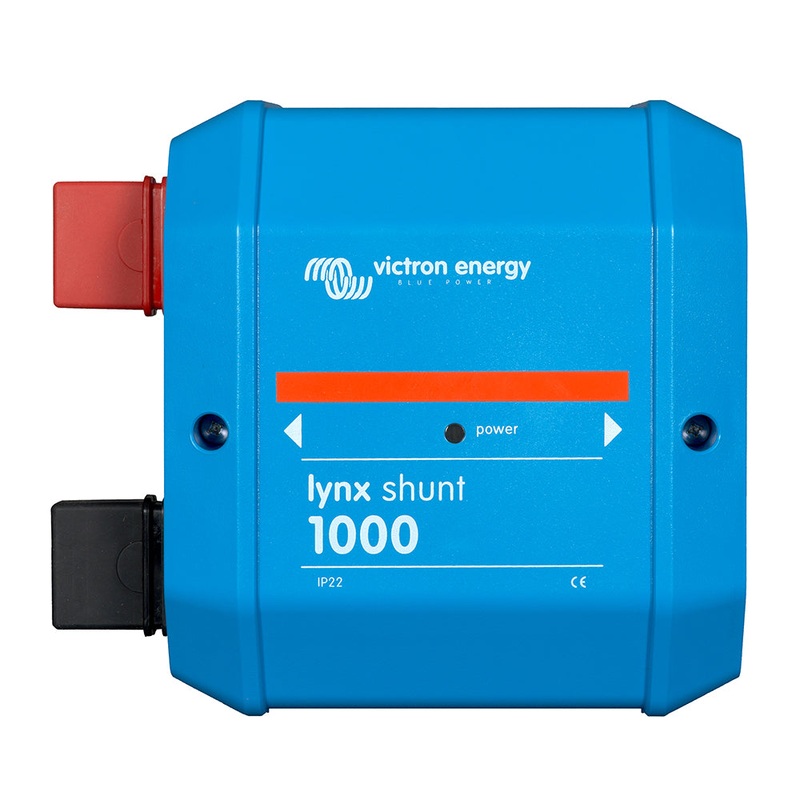

The Lynx Shunt VE.Can is an intelligent 1000A shunt with location for a fuse (not included), the built in battery monitor accurately monitors the state of charge of your battery. The Lynx shunt contains a positive bus-bar with space to mount a CNN fuse and a negative bus-bar with a shunt. It also contains battery monitoring electronics. The Lynx shunt can send via the VE.CAN bus battery monitoring information to a CCGX or VGX or to a third party CANbus monitoring system, such as a NMEA2000. The CCGX, VGX or third party display acts as battery monitor display and is also used to set up the built-in battery monitor.

The Lynx shunt is available with a VE.Can connection.

Fuse CIP140325000 – Fuse CNN 325A/80V for Lynx shunt, or alternatively a CNN fuses by Littlefuse can be used.

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Please contact your dealer for any returns, repairs or support issues related to this product.

Specifications:

• Type: Lugs
• Box Dimensions: 4″H x 7″W x 12″L WT: 3.4 lbs
• UPC: 8719076022602

Quick Guide (pdf)
