Description

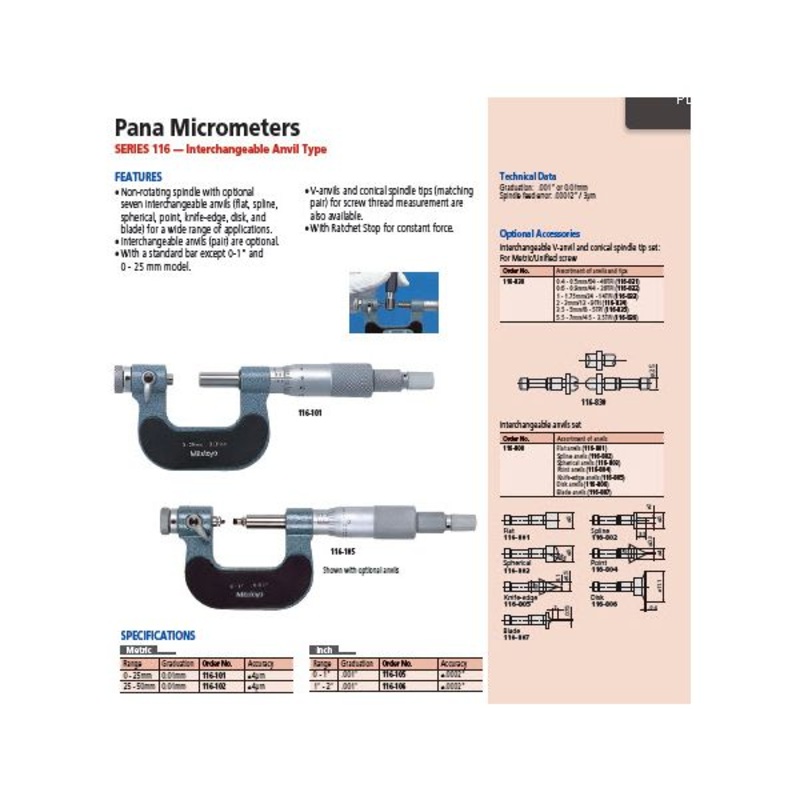

Universal Micrometer Interchangeable Avil/Spindle, 25-50mm 116-102-10
This Universal Micrometer should be used with optional interchangeable tips. It offers you the following benefits:
- Its non-rotating spindle accepts seven forms of optional interchangeable anvil/spindle tip
(including flat, spline, spherical, point, knife-edge, disc, and blade) allowing you to use it in a wide range of applications. - Optional anvils/spindle-tips for screw thread measurement (matching V and cone) are also
available.
- Range: 25-50 mm
- Resolution: 0.01mm
- Accuracy: 0.004mm
- Non rotating spindle
- Ratchet stop
- Measuring force: 5-10N
- Measuring face: Interchangeable anvil/spindle inserts (optional)
- Measuring spindle: 8 mm diameter, spindle pitch 0.5 mm
- Scale: Thimble and sleeve satin chrome finish, 18mm diameter
- Metric
