Description

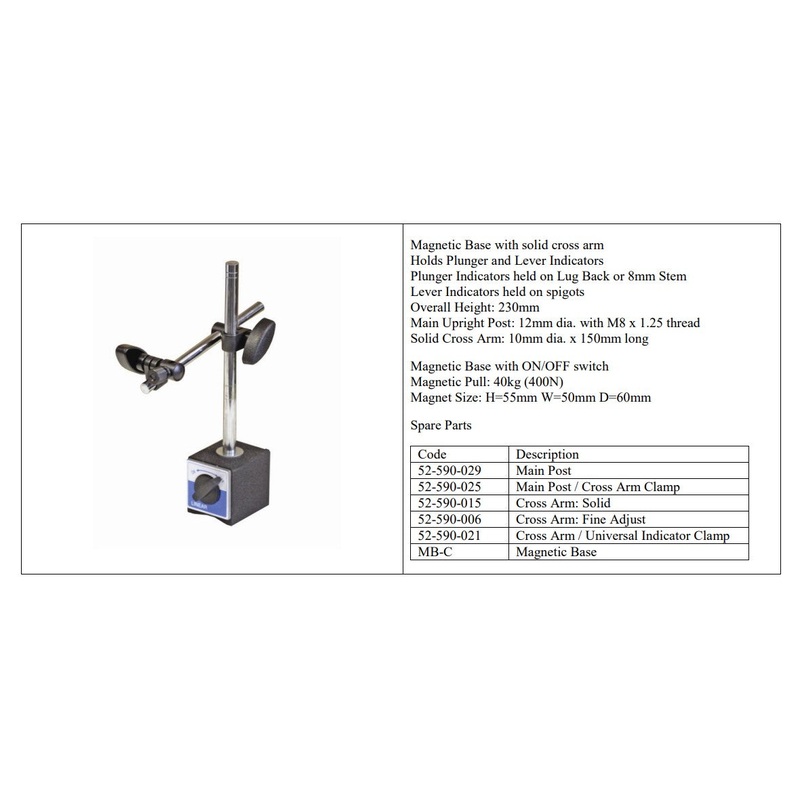

- Magnetic Base complete with two arms:
1 x Solid Cross Arm
1 x Fine Adjustment Arm - Magnetic Base with solid cross arm
- Plunger Indicators held by lug back or up to 8mm dia. stem
- Lever Indicators held by spigot
- Overall height 230mm
- Switchable magnet has 400N force
- Dial Gauge (DG-M) specification:
- Adjustable dial
- Bezel diameter: 60mm
- Hardened & ground racks
- Bezel lock
- Tolerance pointers
- Travel: 10mm
- Resolution: 0.01mm
- Stem dia: 8mm
- This kit can also be supplied with an Imperial Gauge, available upon request.
