Description:

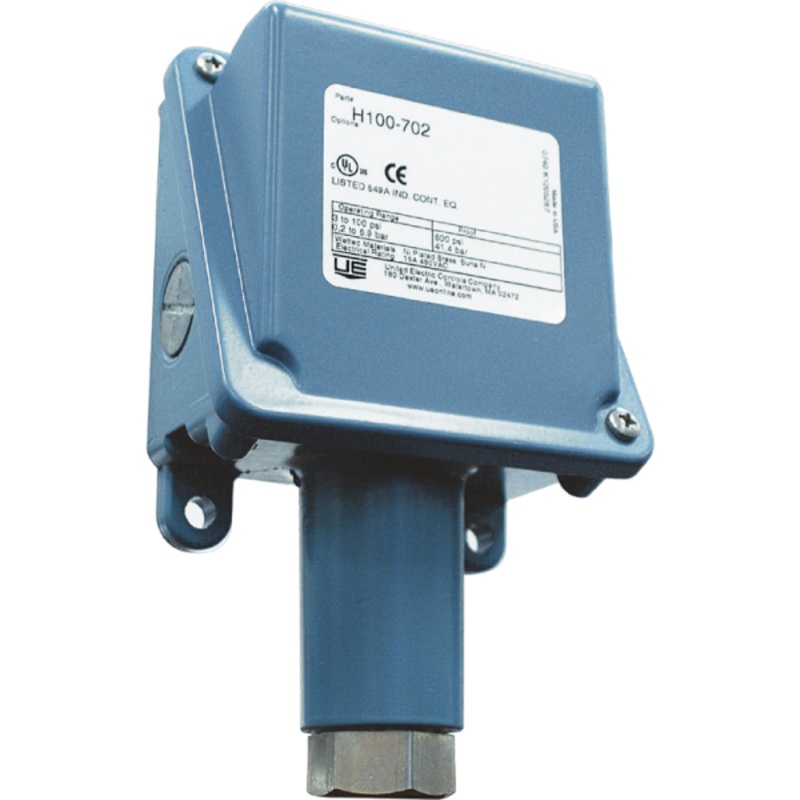

The 100 Series is a cost-effective pressure and temperature switch for process plants and OEM equipment. The rugged, one piece enclosure features a slanted cover for wiring accessibility.
A wide variety of microswitch and process-connection options make this versatile series ideal for applications requiring a rugged weather-proof mechanical switch.
Typical applications that utilize the 100 Series are heat tracing, freeze protection, processing equipment (pumps, compressors), inputs for annunciator panels, and fire suppression systems.
Features:
- UL listed and cUL certified.
- CE compliant to low voltage directive and pressure equipment directive.
- Optional ATEX or GOST intrinsic safety compliance
- Single switch (SPDT or DPDT) output
- Welded stainless steel diaphragm models
- Optional sensor material for corrosive media
- Polished stainless steel flush mount connection
- Pump switch models with wide adjustable dead band resistant cover
MODEL
RANGE
DESCRIPTION
H100-701
1.5 – 30 PSI
Buna-N diaphragm and O-ring with nickel-plated brass 1/4 NPT (female) pressure connection
Over Pressure Range: 500 PSI MAX
Proof of Pressure Range: 600 PSI MAX
H100-702
3 100 PSI
H100-703
9 300 PSI
RESOURCES:
- Technical Literature for the H100 Series
- Installation and Manual for the H100 Series
