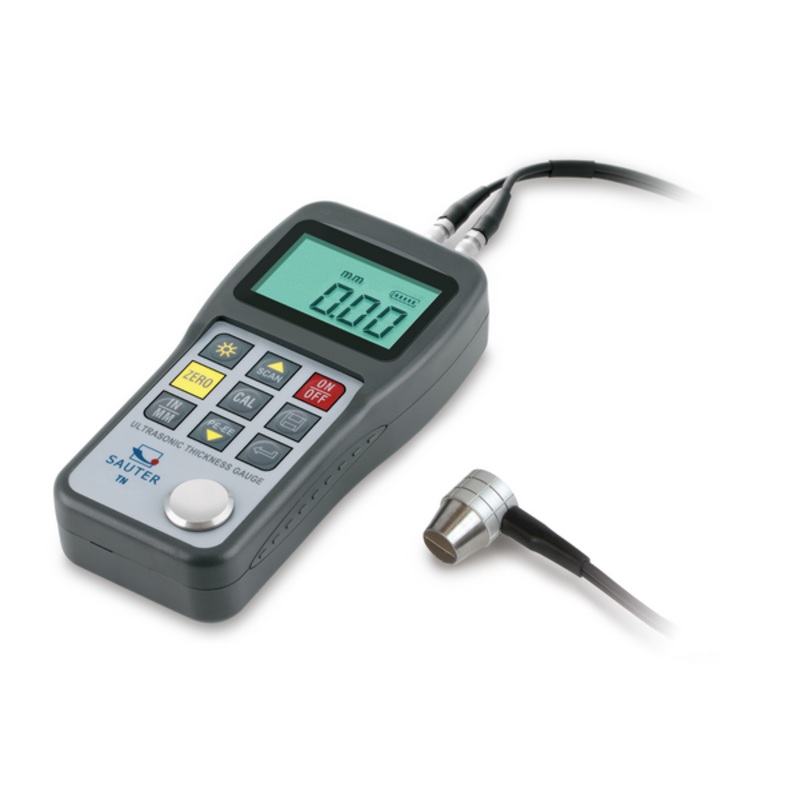

Ultrasonic Thickness Gauge external TN 80-0.1US 0.75 – 80mm 0.1mm 7 MHz 6mm
Product image
-76%
Product image
Product image

Ultrasonic Thickness Gauge external TN 80-0.1US 0.75 – 80mm 0.1mm 7 MHz 6mm

Original price was: $620.00.Current price is: $150.00.

SKU: TN80.1US Category:

Description

  • External measuring head
  • Scan mode (10 measurements per sec.) or single point measuring mode possible
  • Internalmemoryfor up to 20 files (with up to 100} values per file)
  • Selectable measuring units: mm inch
  • Scope of delivery: Operating instructions, batteries, external measuring head ( 10 mm) and ultrasound contact gel

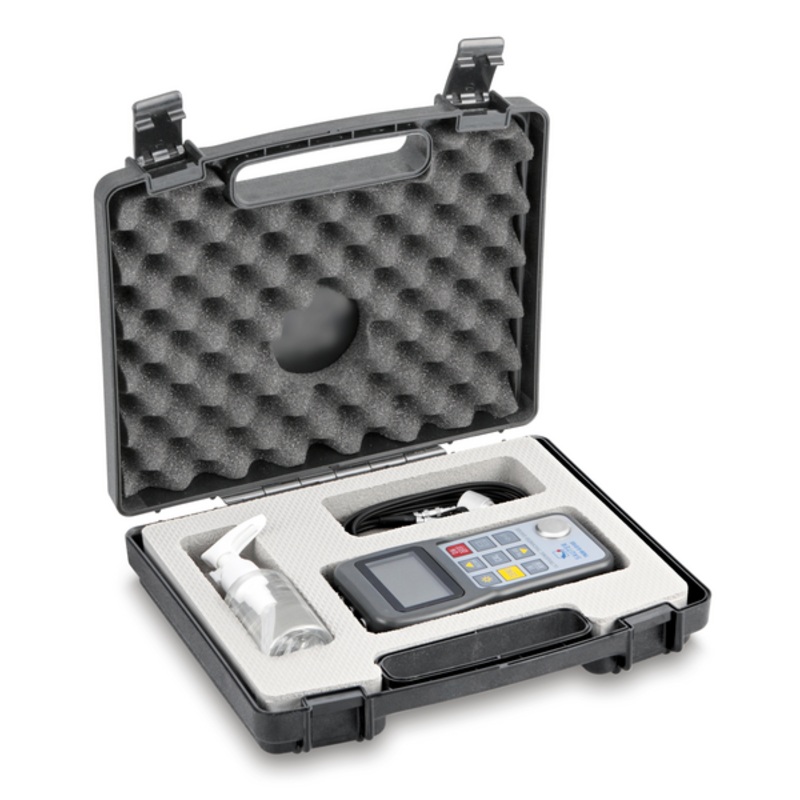

  • Delivered in a robust carrying case
Material thickness pulse-echo [Max] (mm) 80 mm Material thickness pulse-echo [Min] (mm) 0,75 mm Measuring range pulse-echo 0,75 mm 80 mm Readability material thickness [d] (mm) 0,1 mm Tolerance (% of [Max]) 0,5% Units mm, inch Speed of sound [Max] (m/s) 9999 m/s Speed of sound [Min] (m/s) 1000 m/s Speed of sound 1000 m/s 9999 m/s Measuring head measuring frequency 7 MHz Battery 21.5 V AA Material housing plastic Dimensions completely mounted (WDH) 1507432 mm Cable length 0,9 m
