Description

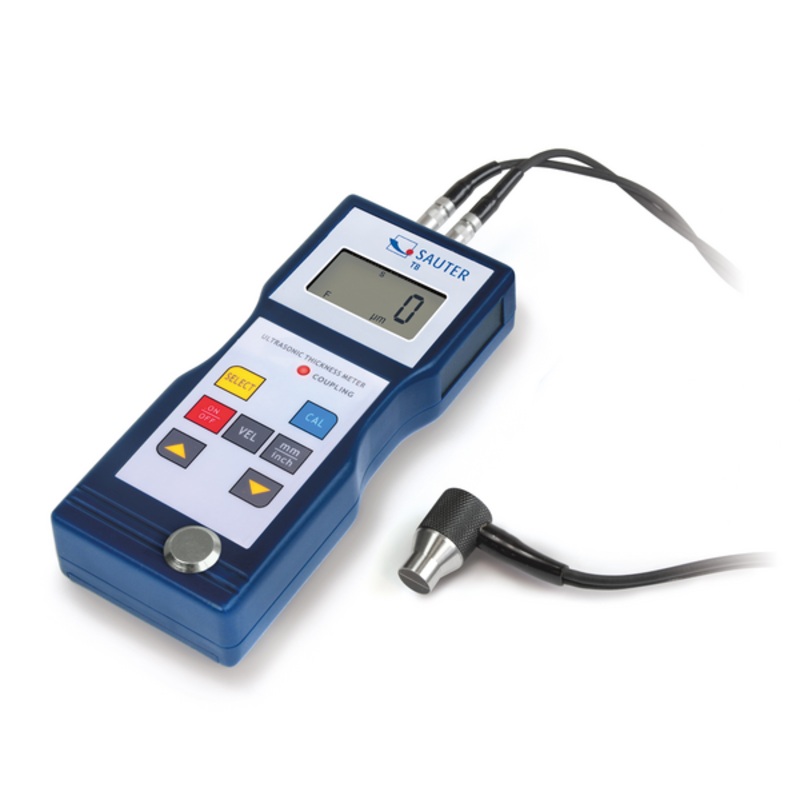

- External measuring head for difficult-to-access measuring points
- Base plate for adjustment included
- Auto-Power-Off
- Selectable measuring units: mm inch
- Can only analyse these materials: cast iron, aluminium, copper, brass, zinc, quartz glass, polyehylene, PVC, grey cast iron, nodular cast iron, steel

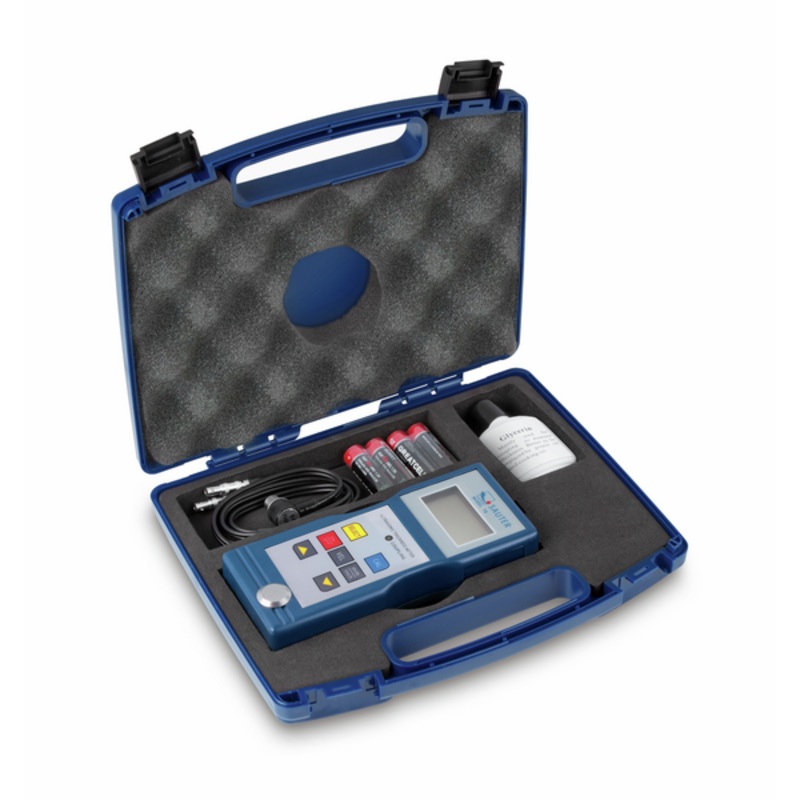

- Scope of delivery: Operating instructions, batteries, external measuring head ( 8 mm) and ultrasound contact gel
- Delivered in a robust carrying case
-
Material thickness pulse-echo [Max] (mm) 200 mm Material thickness pulse-echo [Min] (mm) 1,5 mm Measuring range pulse-echo 1,5 mm 200 mm Readability material thickness [d] (mm) 0,1 mm Tolerance (% of [Max]) 0,5% Units mm, inch Speed of sound [Max] (m/s) 9999 m/s Speed of sound [Min] (m/s) 500 m/s Speed of sound 500 m/s 9999 m/s Measuring head measuring frequency 5 MHz Battery 41.5 V AA Material housing plastic Dimensions completely mounted (WDH) 1616832 mm Cable length 0,9 m
