Description

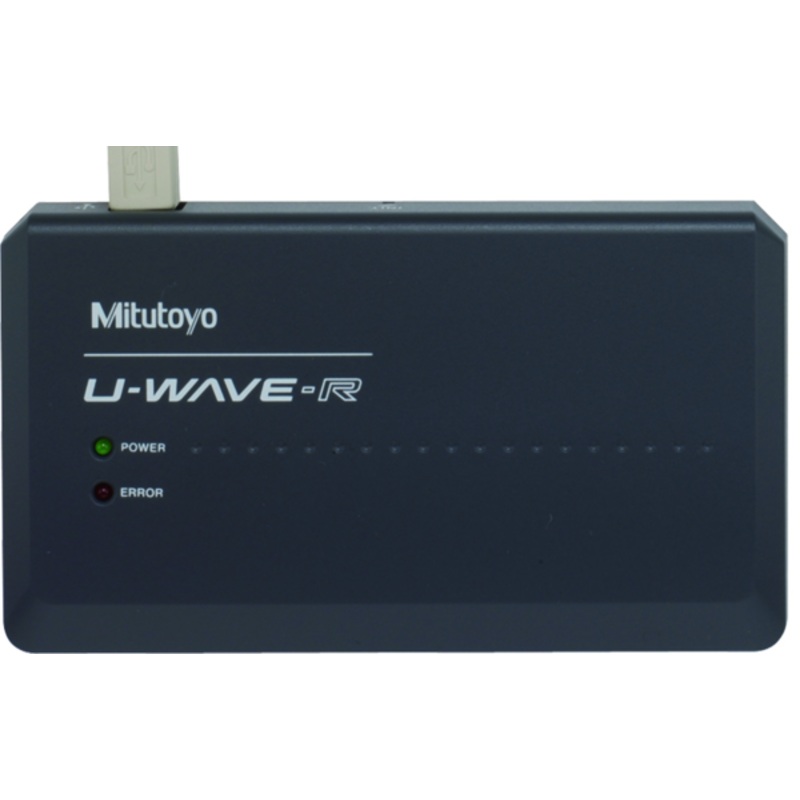

02AZD810D U-WAVE-R Receiver with U-WAVEPAK
| Wireless communication protocol: |
Proprietary (2,4 GHz by original specification based on IEEE 802.15.4)
|
| Functions: |
Reception of measurement data (cancel command, error command)
All band ID scan (investigation of noise level)
Input voltage level fall warning from USB
|
| Modulation method: |
DS-SS (Direct Sequence Spread Spectrum)
|
| Remarks: |
U-WAVE-R + Software (U-WAVEPAK)
|
| Communication distance: |
Approx. 20 m (within visible range)
|
Number of U-WAVE-R
units that can be
connected to PC: |
Up to 16
|
| Communication speed kbps: |
250
|
| Power supply: |
USB bus power system
|
Number of U-Wave-T
units that can
be
connected: |
Up to 100
|
| Communication with measuring tool: |
Digimatic (6 digits), Digimatic 2 (8 digits) automatic identification
|
| Communication frequency: |
2,4 GHz band (2,405-2,475 GHz, 15 channels, 5 MHz interval)
|
| Transmission output: |
1 mW (0 dBm) or below
|
| OS compatibility: |
Windows 2000 Professional (SP4),
Windows XP Professional (SP2), Windows XP Home Edition (SP2), Windows Vista, Windows 7 (32bit, 64bit),
Windows 8, 8. 1, 10 (32bit, 64bit),
Data Collection Macro for MS Excel (to be used in U-WAVEPAK) does not support MS Excel of 64bit edition.
|
| Delivered: |
With USB cable (1m), installation board, tapping screws (2 pcs.)
|
