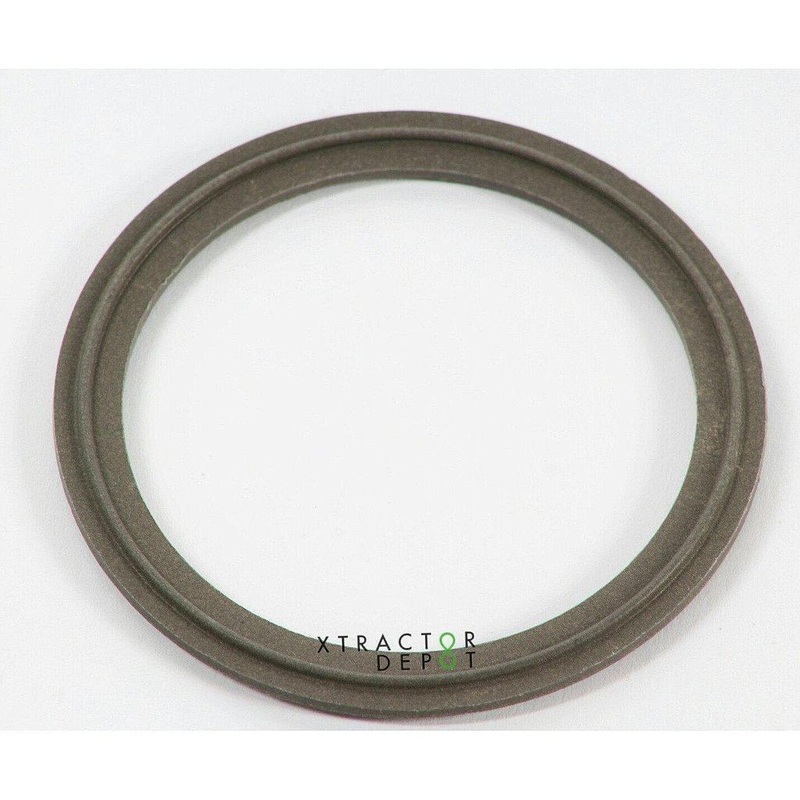

Tuf Steel Tri-Clamp Gasket (UNFLANGED)

Description

Brand: Rubber Fab Color: Grey Material: Tuf-Steel Style: Tri-Clamp Temperature Rating: -350F to 550F Type: Type I (Unflanged Gaskets)

SOLD INDIVIDUALLY

Rubber Fab’s Tuf-Steel Sanitary Tri-Clamp Gaskets are the material of choice when purity, long service life, performance, chemical resistance, and heat resistance are required. Tuf-Steel Gaskets are 100% leak free when torqued correctly, and will experience minimum creep and cold flow. The Tuf-Steel material is a unique proprietary blend of non-pigmented PTFE (Teflon) and 316L Stainless Steel that has been water atomized and passivated. The end result is a Tuf-Steel Gasket that is non-stick, features no pigmentation, and has ultra-low absorption rates. These Tri-Clamp Gaskets can maintain seal integrity under large temperature fluctuations with a serviceable temperature range from -350F to 550F. We recommend the use of the Torque-Rite Clamp Nut to get the most out of these gaskets.

Tuf-Steel is the original metal detectable gasket, the material has always been detectable with metal detectors and magnetic separators. Over 10 years of testing and documented application usage show that Tuf-Steel is the choice for perfect surface performance, outstanding durability, extended service life and increased up-time for both SIP (steam in place) and WFI (water for injection) applications. Tuf-Steel Gaskets are ideal for sanitary steam and extreme temperature processes, especially fryer and hot oil applications. Unlike envelope gaskets, the superior strength of the Tuf-Steel blend will not revert, eliminating creep and cold flow, providing a leak-free seal.

Made in USA

Storing Tuf-Steel Gaskets:

• Shelf Life: 20 Years from cure date
• Store in original packaging in clean and dry warehouse
• Do not expose to direct sunlight
• Keep more than 6′ away from electric motors
• Maintain temperature between 65F and 85F

Tuf-Steel Gasket Standards Compliance:

• FDA CFR 21, 177.1550
• U.S. Pharmacopeia Class VI Certification
• USDA Hazard Analysis and Critical Control Points
• Cytotoxicity Criteria
• USDA and 3-A Sanitary Standards
• ASME-BPE Standards for Type I and Type II
• ADI Free (Animal Derived Ingredient Free)
• Current Good Manufacturing Practices (CGMP)

Tuf-Steel Tri-Clamp Gasket Features:

• Color Code: No Dot
• -350F to 550F Temperature Range
• Proprietary blend of PTFE and 316L (water atomized and passivated)
• Maintains seal with wide temperature variations
• Metal Detectable
• Extended service life
• Leak-proof performance
• Extremely durable
• Great for SIP(steam in place) and WFI (water for injection) applications
• Non-pigmented
• Non-stick surface
• Minimal cold flow and creep
• 500 CIP/SIP cycles guaranteed
• Excellent expansion/contraction stability
• Minimal thermal expansion
• Excellent Chemical Resistance
• Compression Controlled Gasket
• Rouging Eliminated
• No gasket extrusion into sanitary tube ID
• No obstruction of flow

Tuf-Steel Material is also available in:

• Type II Flanged Tri-Clamp Gaskets
• Screen Gaskets
• Sock Gaskets
• Orifice Plate Gaskets
• Gauge Guards
• O-Rings
• Mini Steam Trap Orifice Plates
• ANSI 150# Flange Gasket (1/8″ Thick)
• ANSI 300# Flange Gasket (1/8″ Thick)
• Bevel Seat Gaskets
• I-Line Gaskets
• John Perry Gaskets
• Q-Line Gaskets
• DIN/ISO
• X-Ray Detectable
• 1/8″ Thick Sheets
• 1/8″ – 2″ Thick Rods
• Custom Gaskets, Profiles, Cord, Scrapers

1 = Excellent2 = Good3 = Acceptable
4 = Marginal5 = Poor6 = Do Not Use Continuous
Stream Intermittent
Steam Pure
Water
Ambient Pure
Water
Hot Process
Fluids
Ambient Process
Fluids
Hot Process
Fluid Variables
0-100C Temperature
Range Tuf-Steel 1 1 1 1 1 1 1 -350-550F Tuf-Flex 1 1 1 1 1 1 1 -20-300F Food-Flex 1 1 1 1 1 1 1 -30-250F PTFE 1 1 1 1 1 1 3 -100 to 500F Silicone
(platinum) 2 2 2 2 2 2 1 -40-450F Silicone
(peroxide) 2 2 2 2 2 2 1 -40-450F FKM 3 2 2 2 2 2 2 -30-400F EPDM
(peroxide) 3 3 3 3 3 3 3 -30-300F Buna 0 0 5 5 5 5 5 -30-200F
