Description
Mitutoyo; Inside (Stick) Micrometer

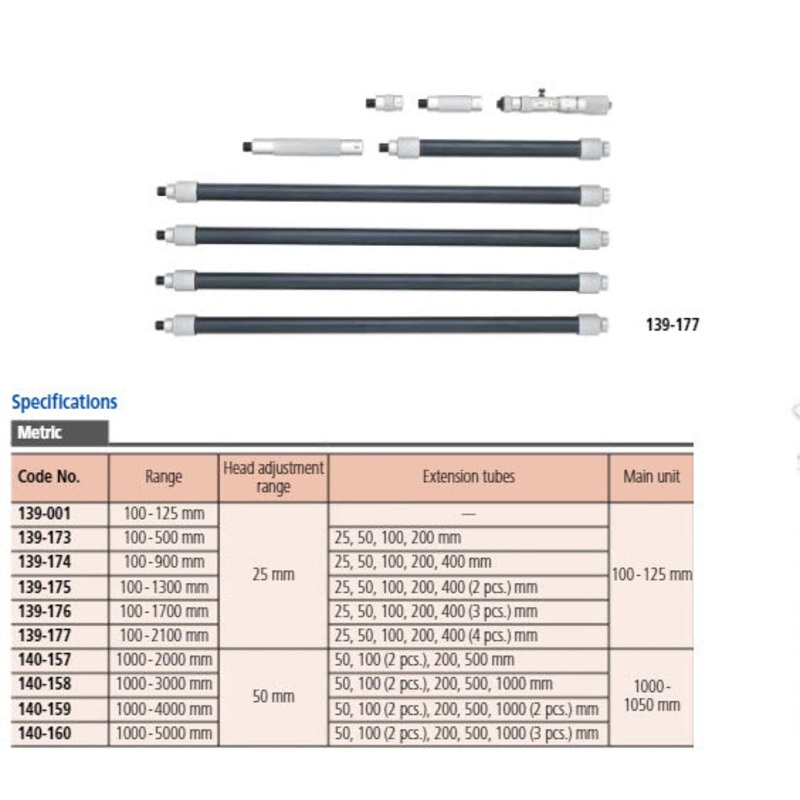

A Mitutoyo inside micrometer covering a range of measurement by using a set of interchangeable extension tubes that can be used singly or in combination. The micrometer head is satin-chrome finished.
Features
- Digital/Analog: Analog
- Inch-Metric: Metric
- Range: 100 – 1300 mm
- Measuring span: 25 mm
- Graduation: 0.01 mm
- Spindle feed error: 3 m
- Limit of error: (3+number of rods+max. measurement length/50) m
- Scale: Thimble and sleeve satin chrome finish, 18 mm 13 mm (139-203, 139-204)
- Measuring spindle: Spindle pitch 0.5 mm
- Measuring face: Carbide
- Measuring method: 2-point
- Extension rods: 6 (25, 50, 100, 200, 400 mm (2 pcs.))
- Delivered: Including box, key, extensions, micrometer head
- Mass: 490 g
All images are for representation only.
