Description
Mitutoyo; Inside (Stick) Micrometer

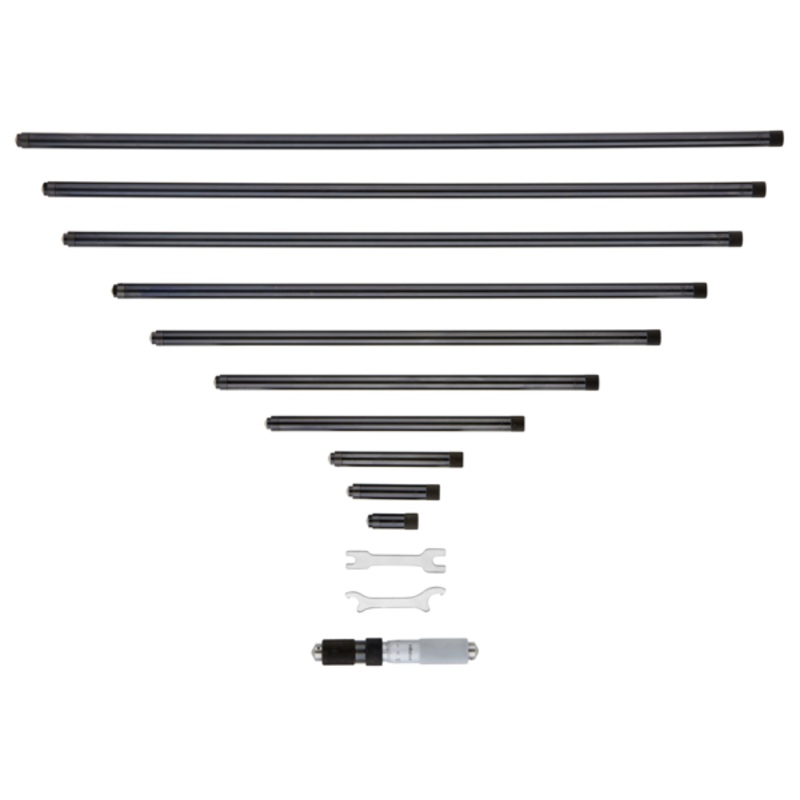

This is an extension pipe type inside micrometer that offers you the following benefits:
- Interchangeable extensions in a hollow pipe design.
Features
- Digital/Analog: Analog
- Inch-Metric: Metric
Range: 100 – 1000 mm - Measuring span: 10 mm
- Graduation: 0.01 mm
- Spindle feed error: 6 m
- Limit of error: (6+max. measurement length/50) m
- Scale: Thimble and sleeve satin chrome finish, 18 mm 13 mm (139-203, 139-204)
- Measuring spindle: Spindle pitch 0.5 mm
- Measuring face: Carbide
- Measuring method: 2-point
- Extension rods: 10 (25, 50, 75, 150, 225, 300, 350, 400, 425, 450 mm)
- Delivered: Including box, key, extensions, micrometer head
- Mass: 240 g
All images are for representation only.
