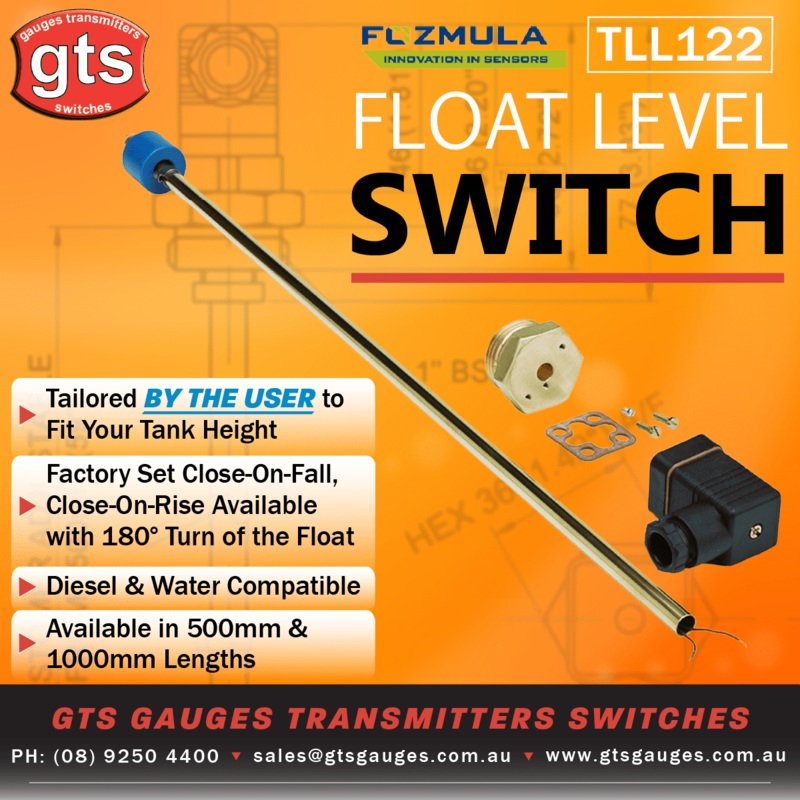

The Rochester TLL122 is flexible as it is designed with the intention to be user adjustable, making it perfect to be tailored fit to different tank sizes. The TLL122 also comes with the option to change the switch function between the factory default ‘Close-On-Fall’, or, by turning the float 180, the TLL122 can be set in the ‘Close-On-Rise’ position.
Dimensions:
Standard Length: 500 mm, 1000mm & 1500mm
Thread: 1 BSPP
Liquid Types:
Diesel and Water Compatible
Materials:
Header: Brass
Stem: Brass
Float: Polypropylene
Float Stop: 304 Stainless Steel
Gasket: Klingersil C4324
Flange: Brass
Reed Contact Specification:
Max. Voltage: 250 VAC/VDC
Max. Current: 1A
Max Power: 10 VA
Connections:
Connector: DIN43660 3 Pin and Earth Connector
