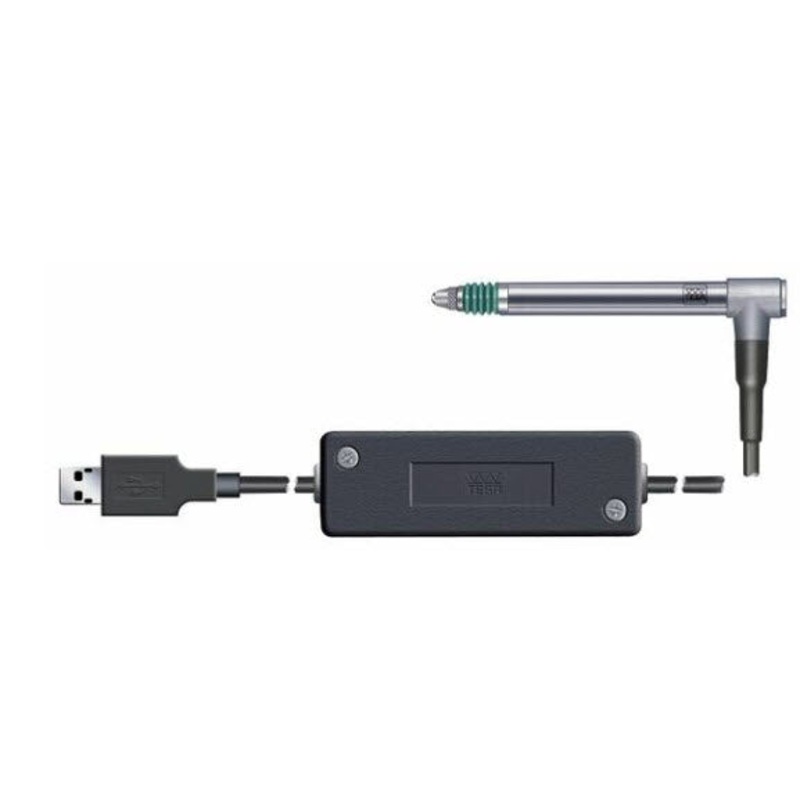

Tesa 03230202 GTL222 probe, USB, pneumatic, 1,5 mm, force = 1,2 N, radial cable

Description

PROBE – USB connectivity – Activation of measuring bolt by pneumatic pressure – Measuring bolt mounted on a ball bearing – Separate guiding from the housing so that the movement of the measuring bolt moves easily even if the probe is not clamped appropriately – 8 mm probe housing, can be clamped over its entire length – The guides are effectively protected against penetration of liquids (oils) or solids (dust) by sealing bellows MEASUREMENT – No need to use an interface box as it connects directly to a computer’s USB port – The measuring inserts can be replaced or exchanged SOFTWARE – Possibility to manage from 1 to 4 USB probes with free TSIP software downloadable from TESA website – Possibility to manage 4 or more USB probes with DataDirect, StatExpress or DATA-VIEWER software (free) OTHER – Communication by sending ASCII commands possible

Hysteresis 0,5 m Standard DIN 32876 Max. perm. errors L in mm 0,4 + 2,4 x (L x L) m Repeatability 0,1 m Coefficient of linear expansion 0,2 m/C Material Fixing shank: nickel plated Measuring bolt: stainless steel Protection bellow: Viton Ball insert: tungsten carbide Dimensions Fixing shank: 8 mm Insert thread: M2,5 Ball insert: 3 mm Cable: 2,9 m Connector: USB A type Degree of protection IP65 Weight Mobile weight: 6 g Remark(s) CAD files available on request Downloadable data sheets on www.TESAtechnology.com Included in delivery Probe Hose clamp Wrench Measurement report User manual Declaration of conformity
