Description

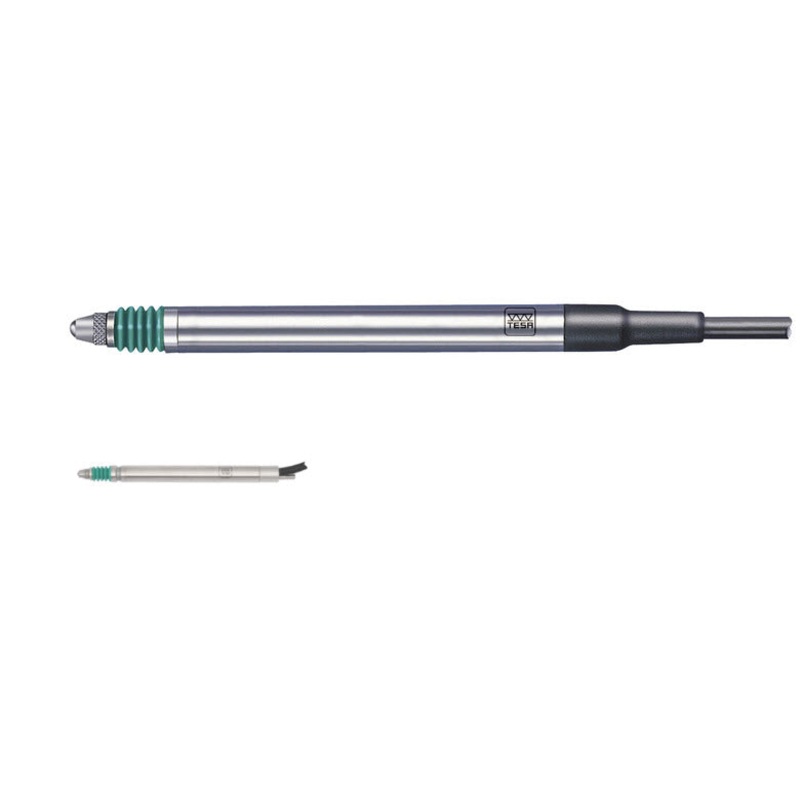

PROBE – Linearized probe – Measuring bolt mounted on a ball bearing – Guiding is insensitive to any radial force exerted on the measuring bolt – Separate guiding from the housing so that the movement of the measuring bolt moves easily even if the probe is not clamped appropriately – 8 mm probe housing, can be clamped over its entire length – The guides are effectively protected against penetration of liquids (oils) or solids (dust) by sealing bellows MEASUREMENT – The measuring force can be adjusted by changing the spring (depending on model) – The measuring inserts can be replaced or exchanged
| Hysteresis |
0,02 m |
| Standard |
DIN 32876 |
| Max. perm. errors |
L in mm 0,2 + 2,4 x (L x L) m 0,2 + 0,8 x L m (with TESA interface) |
| Repeatability |
0,01 m |
| Coefficient of linear expansion |
0,2 m/C |
| Material |
Fixing shank: nickel plated Measuring bolt: stainless steel Protection bellow: Viton Ball insert: tungsten carbide |
| Dimensions |
Fixing shank: 8 mm Insert thread: M2,5 Ball insert: 3 mm Cable: 2 m Connector: 5p DIN45322 |
| Degree of protection |
IP65 |
| Weight |
Mobile weight: 6 g |
| Remark(s) |
CAD files available on request Downloadable data sheets on www.TESAtechnology.com |
| Included in delivery |
Probe Wrench Measurement report User manual Declaration of conformity |
