Description

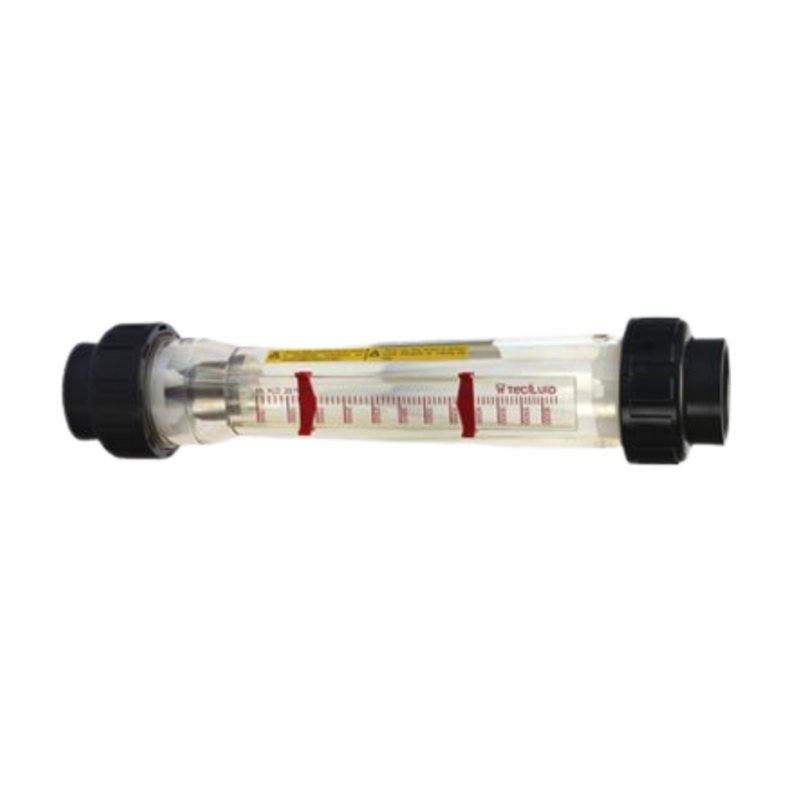

The Tecfluid Series PS Flowmeter boasts a low cost and excellent readability within a light weight design. It can be used in a wide range of environments, making it the perfect choice for those looking for a reliable display solution in most conditions.
Reasonably easy to install. Available as standard with threaded end connections. Socket Weld for solvent and fusion welding, and Flanged Connections are an available option on request.
The Tecfluid Series PS Flowmeter is a perfect choice for liquid or gas flow-rate measurement. These are designed to be mounted in the Vertical political, with the media flowing upwards through the tube.
We can offer standard scales in LPH (water) and M3PH (water), as well as custom scales for air and gas flow rates.
MODEL
RANGE (WATER)
THREADED PVC ENDS
PRESSURE MAX.
PS-314-1600
1601600 LPH
1 BSPP FEMALE
10 BAR
PS-314-2500
2502500 LPH
1 BSPP FEMALE
10 BAR
PS-315-4000
4004000 LPH
1- BSPP FEMALE
10 BAR
PS-315-6300
5006300 LPH
1- BSPP FEMALE
10 BAR
PS-316-M010
110 M3PH
2 BSPP FEMALE
10 BAR
PS-316-M014
214 M3PH
2 BSPP FEMALE
10 BAR
- Flow Rate:
- Water: 4 l/h … 50 m3/h
- Air : 200 Nl/h … 1500 Nm3/h
- Accuracy:
- 4% (qG=50%)
- Connections:
- ISO 1452-3 or ASME B16.5 flanges: DIN … DN80/ 1/2″ … 3″
- BSP or NPT threaded connection 1/2″ … 3″
- Solvent weld socket PVCConnections
- Materials:
- Measuring tube: POLYSULPHONE
- Fittings: PVC, EN 1.4404 (AISI 316L), PP, Steel
- Float: EN 1.4404 (AISI 316L), Aluminium, PVC, PVDF, PTFE,…
NB: ALL PRICES ARE GST EXCLUSIVE
Click to read more about our Tecfluid Plastic Tube Flowmeters
