Description
4 foot Kit Includes:
- (4) 1/2″ X 36″ Aluminum Rods
- (3)1/2″ X 38″ Aluminum Rods
- (14)Aluminum Lattice Connector
- (4)Zinc Vertical Base Plate Assembly
- (2) Aluminum Lab Frame Rod, 12.7 mm (1/2″) x 60.96 cm (24″) Long
- (2) Zinc Swivel Base Plate Assembly
- Mounting Screws Not Included
6 foot Kit Includes:
- (7) 1/2″ X 36″ Aluminum Rods
- (3)1/2″ X 62″ Aluminum Rods
- (25) Aluminum Lattice Connector
- (7) Zinc Vertical Base Plate Assembly
- (4) Aluminum Lab Frame Rod, 12.7 mm (1/2″) x 60.96 cm (24″) Long
- (4)Zinc Swivel Base Plate Assembly
- Mounting Screws Not Included
Recommended Uses:
Fume Hood
Product Features:

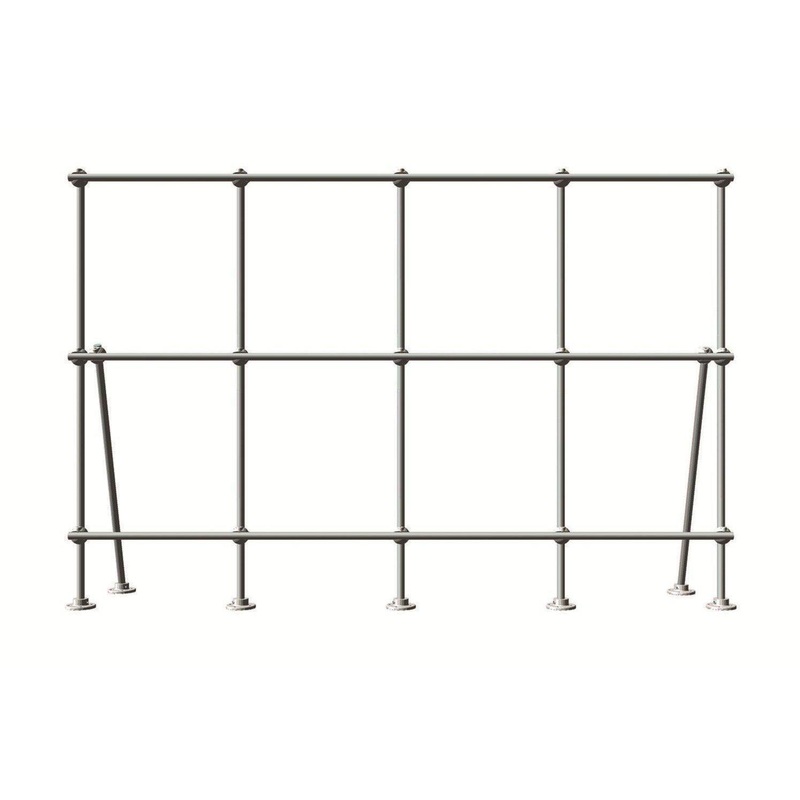

This mounting option is recommended for situations when you need free-standing lattice.
Assembly Instructions:
Lattice frame: Use the open connectors and lattice rods to assemble the frame. The kit assumes a lattice spacing of 1-foot and a border on the sides and top. Spacing may vary depending on your application. Rods may be cut for fit as necessary.
Mounting: After assembling the lattice frame attach vertical base plates to the bottom of the vertical rods. There should be an equal number of remaining 2-foot rods, swivel base plates and open connectors. Connect an open connector to one end of the 2-foot rod and a swivel base plate to the other end. Attach the open connector to the lattice frame 30-45 degrees.Base plates may be secured with #10 screws.Mounting Screws Not Included.
