Description

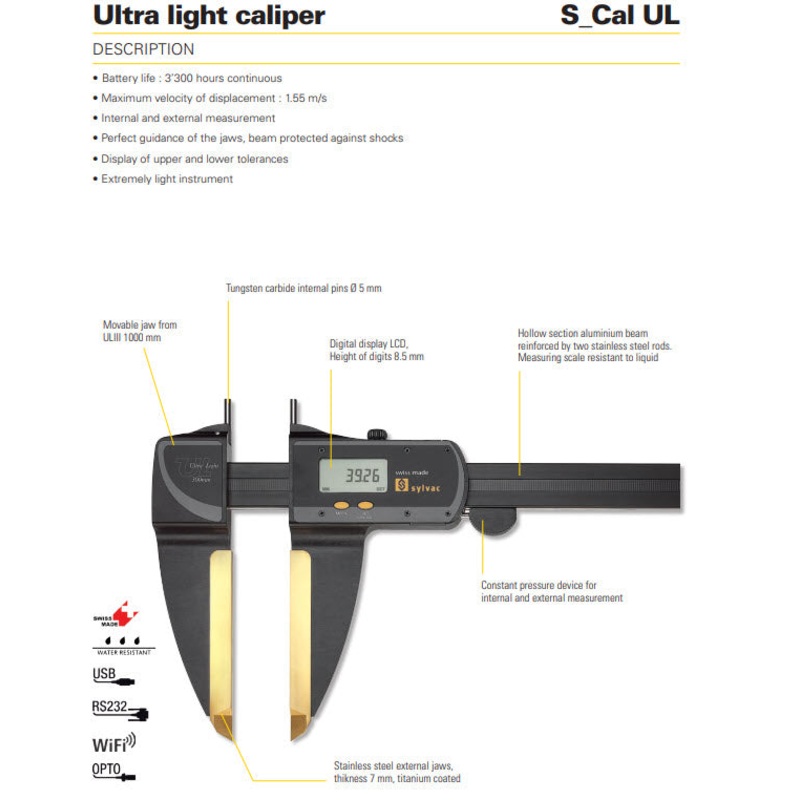

SYLVAC ULTRA LIGHT CALIPER MARK 4 – SPECIAL APPLICATION – JAW TYPE A
Sylvac Ultra Light Digital Caliper Mark III
Available in seven standard sizes covering most large caliper applications, these revolutionary digital gauges
have lightweight reinforced main beams, giving them both incredible strength and an amazing lack of
weight, aiding both accuracy and ease of use. All gauge contact faces are titanium coated or solid carbide
giving excellent wear resistance. A range of flexible accessories further improves the usefulness of these
quality gauges.
Features
Preset facility for Internal / External measurement
Constant measuring force applied to measurement
Hold feature, freezes display for later viewing
Incremental floating zero
Metric / inch operation resolution 0.01mm / 0.0005″
MIN/MAX function
Tolerance limit indicators
Hard wearing titanium coated stainless steel external jaws
Tungsten carbide internal measuring pins
Large easy to read digital display – 8.5mm digits
RS 232 output
Movable left jaw on 1m to 3m models for improved balance
Water Resistant
External Jaws, titanium coated stainless steel: Length = 150mm, 6″
Internal Pins, tungsten carbide: Length = 18mm, 0.71″. Dia. = 5mm, 0.2″
Measuring Speed = 60″ / 1.5m per second
