Surftest SJ-210R [mm] R2m; 0,75mN; Retract-Drive 178-562-11D

Original price was: $2,153.80.Current price is: $147.00.

SKU: TEEy8HhjDIqRh Category:

Description

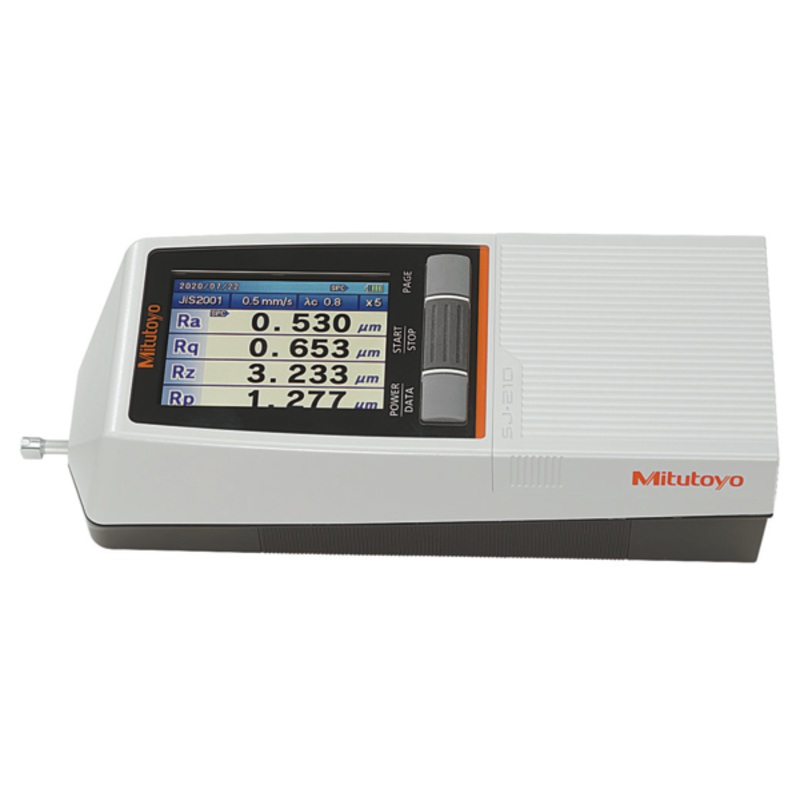

DescriptionThis is a portable measuring instrument that allows you to easily and accurately measure surface roughness.

The Surftest SJ-210 offers you the following benefits:

  • Skid system gives you user friendly and intuitive menu navigation.
  • It works independently of mains power, allowing you to make on-site measurements.
  • The 6.0 cm [2.4] colour graphic, back-lit LCD gives you excellent readability.
  • It performs roughness analyses conform to various international standards (EN ISO, VDA, ANSI, JIS) and customized settings.
  • Different drivers expanding the range of applications.

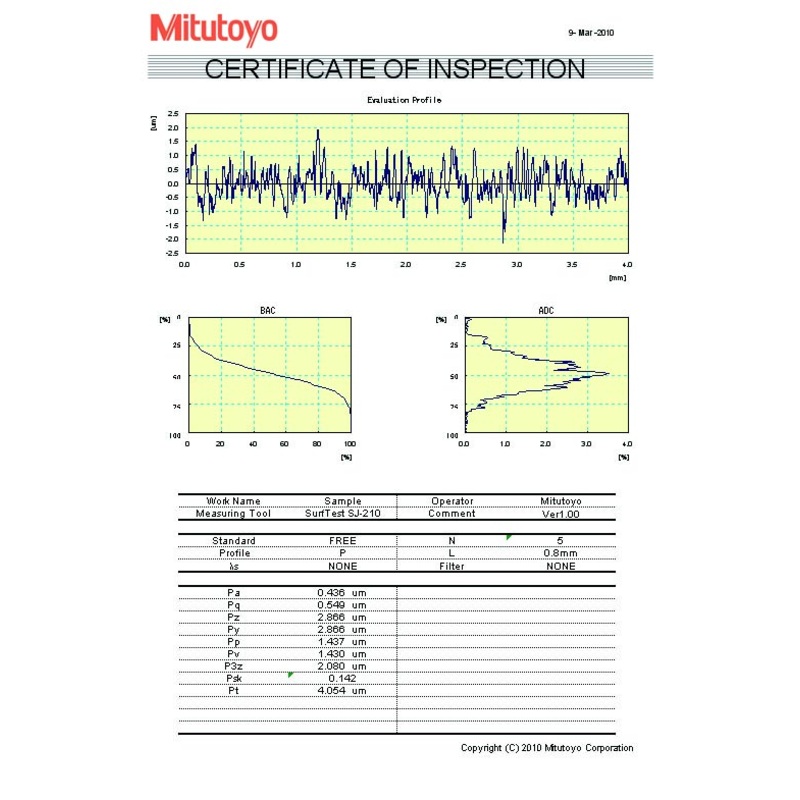

  • Calculation results, assessed profiles, bearing and amplitude curves can be displayed.
  • Support of 21 languages.
  • Operation by keys on the front and under the sliding cover.

Features

Inch-Metric: Metric

Measuring range: 16 mm,
[S-type] 4.8 mm

Traverse: 17.5 mm,
5.6 mm [S-type]

Measuring speed: Measuring: 0.25 mm/s; 0.5 mm/s; Returning: 0.8 mm/s

Functions: Switchable between 16 languages: Japanese, English, German, French, Italian, Spanish, Portuguese, Czech, Polish, Hungarian, Turkish, Swedish, Dutch, Korean, Traditional Chinese, Simplified Chinese

Cable length: 1 m

Detector measuring force: 0.75 mN

Stylus tip angle: 60

Stylus tip radius: 2 m

Measuring method: Induction method

Range: 360 m

Stylus: Diamond Tip

Skid radius: 40 mm

Profiles: Primary Profile (P), Roughness Profile (R), DIN 4,776

Display range:

Ra, Rq: 0.01 m – 100 m
Ry, Rz, Rt, R3z, Rvk, Rpk, Rk, Rp:
0.02 m – 350 m
Vo: 0 – 10 (mm3/cm2)
S, Sm: 2 m – 4,000 m
Pc: 2.5/cm – 5,000/cm
Mr 1, Mr 2: 0 – 100 %
mr: 1 – 100 %

Roughness standard: DIN, ISO, ANSI, JIS

Sampling length (L): 0.08mm, 0.25 mm, 0.8 mm, 2.5 mm

No. of sampling length (L): x1, x3, x5, xL

Digital filter: 2CR-75%, 2CR-75% (phase corrected)

Cut-off length: lc: 0.25 mm, 0.8 mm, 2.5 mm, ls: 2.5 m, 8 m

Auto-sleep: Automatic after 30 seconds

Tolerance: Upper/lower limit

Interface: RS-232 C interface for input/output, DIGIMATIC output

Mass: 500 g

Power supply: Via AC adapter (DC 7.5 V 1.5 W) built-in or rechargeable battery
