Name: Surftest SJ-210 [mm] R2m; 0,75mN 178-560-11D
SKU: TEENu25pvQDFP
Price: 150.00 USD
Availability: InStock

Description

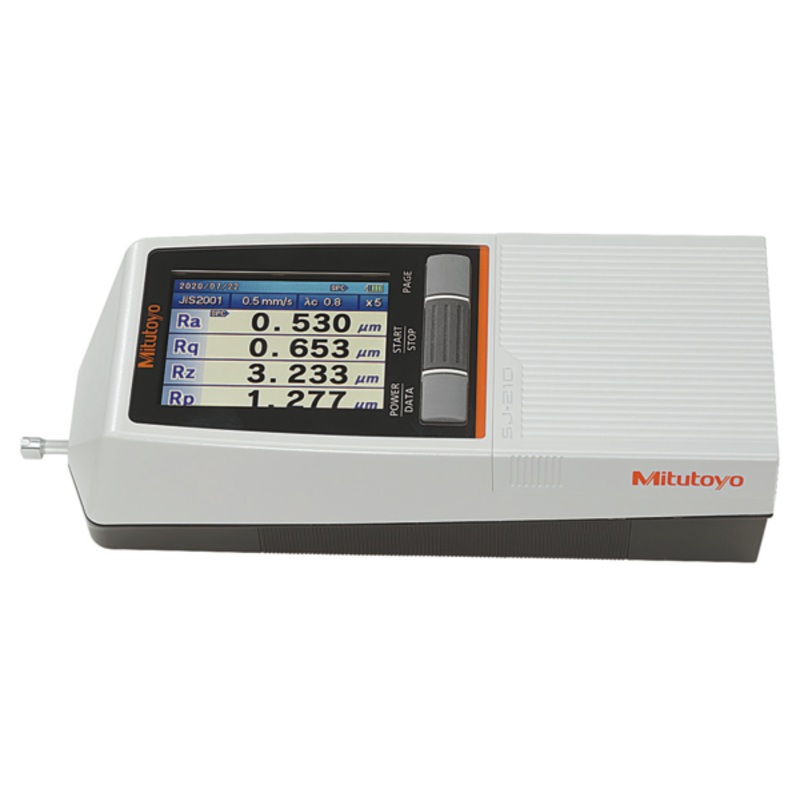

Surftest SJ-210 [mm] R2m; 0,75mN 178-560-11D

This is a portable measuring instrument that allows you to easily and accurately measure surface roughness.

The Surftest SJ-210 offers you the following benefits:

Skid system gives you user friendly and intuitive menu navigation.
It works independently of mains power, allowing you to make on-site measurements.
The 6.0 cm [2.4] colour graphic, back-lit LCD gives you excellent readability.
It performs roughness analyses conform to various international standards (EN ISO, VDA, ANSI, JIS) and customized settings.
Different drivers expanding the range of applications.
Calculation results, assessed profiles, bearing and amplitude curves can be displayed.
Support of 21 languages.
Operation by keys on the front and under the sliding cover.

Features

Inch-Metric: Metric

Measuring range: 16 mm,
[S-type] 4.8 mm

Traverse: 17.5 mm,
5.6 mm [S-type]

Measuring speed: 0.25 mm/s; 0.5 mm/s;
0.75 mm/s

Functions: Switchable between 16 languages: Japanese, English, Russian, Slovenian, Romanian, Bulgarian, Finnish, German, French, Italian, Spanish, Czech, Polish, Hungarian, Turkish, Swedish

Cable length: 1 m

Detector measuring force: 0.75 mN

Stylus tip angle: 60

Stylus tip radius: 2 m

Measuring method: Differential inductance

Range: 360 m

Stylus: Diamond Tip

Skid radius: 40 mm

Profiles: Roughness Profile (R), R-Motif,
DF-Profile and more

Roughness standard: EN ISO, VDA, JIS, ANSI and customize settings

No. of sampling length (L): x1, x3, x5, xL

Digital filter: Gauss, 2CR75, PC75

Cut-off length:

c : 0.08 mm; 0.25 mm;
0.8 mm; 2.5 mm
s : 2.5 m; 8 m

Auto-sleep: Automatic after 30 seconds

Tolerance: Coloured upper / lower limit

Mass: 500 g

Power supply: Via AC adapter (DC 7.5 V 1.5 W) built-in or rechargeable battery
