Steinmeyer Digital Snap Gauge 50-80mm 76390200320

Description

Steinmeyer Digital Passameter 3902

Digital micrometer with turnable LED display and tolerance mode, device temperature monitoring, USB interface, and optional software

Passameters are adjustable snap gauges which are mostly used for measuring and testing of round-cut and milled parts. They replace a large number of fixed gauges whilst this device also has the advantage of a number display if there are deviations to the preset value.

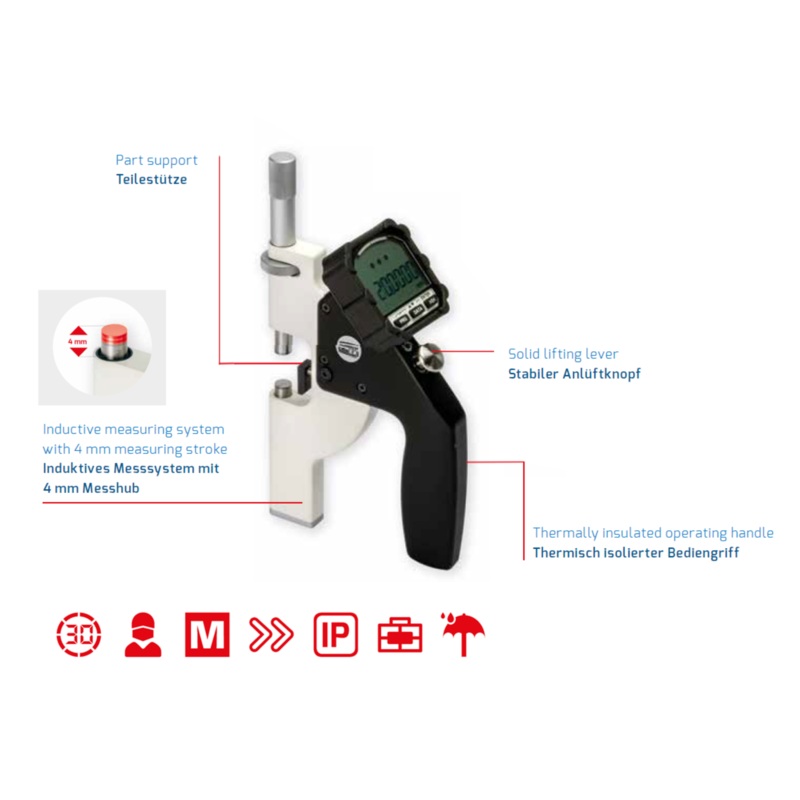

The digital passameter with a solid measuring equipment body and a novel inductive measuring system achieves a very high measuring accuracy and repeatability. The weight of the measuring tool rests on the workpiece due to the anvil which can be adjusted from the top. The measuring probe which is moved in from below has a free stroke of 4 mm and ensures a very high repeatability thanks to its constant measuring force. The display resolution is 0.1 m. The large measuring surface of 10 mm ensures stable support on the specimen. All recorded measuring values can be processed externally with an optional wireless module. The adjustable tolerance function simplifies the use in serial measurements.

Programmable with the optional software FMS-SD1 direct via cable. All internal functions like calibration, LED function and colours, indication bar, measuring mode or password lock can be done via PC.

View Product Data Sheet

Description

• Standard: DIN 863 | DAkkS calibrated acc. to DIN EN ISO/IEC 17025:2018
• Measuring range: 0 – 205 mm (depending on version)
• Resolution: < 0,0001 mm (< 0,1 m) / unit change possible mm/inch
• Display: LCD display (turnable) with tolerance deviation, device temperature monitoring
• Data interface: Triple I (USB cable or Wireless)
• Optionally available: software, device holder, measuring holder

Application

• to measure precision components
• fast and simple serial testing by lifting button and LED tolerance display
• suitable for use in measuring rooms or close to production (IP 65)

All images are for representation only.

Technical Data

Article Digitalpassameter 3902 Standard DIN 863 IP protection class IP 65 Measurement digital Product type passameter, adjustable snap gauge, micrometer Resolution (mm) < 0.0001 mm (< 0.1 m) Resolution (inch) < 0.000005 inch Repeatability < 0.0003 mm (< 0.3 m) Flatness (measuring surfaces) < 0.0003 mm (< 0.3 m) Parallelism (measuring surfaces) < 0.0005 mm (< 0.5 m) Diameter (measuring surfaces) 10 mm Measuring stroke of the sensor 4 mm Measuring force standard 12 – 18 N Measuring force special 10 N Weight (version 0 – 30 mm) 0.9 kg Interface Triple I (USB cable or wireless) Software functionality Yes Display / digit height 7 digits / 10 mm Turnable display element Yes Unit change mm / inch Display options MIN / MAX / BEAT / MW / – measurement mode Conversion factor – Measurement mode Yes Reference mode I / II Tolerance input Traffic light function, acoustic output Reversal of measuring direction Yes Key lock HOLD function Device temperature monitoring Yes Automatic power off Yes Battery CR2032 Operating time approx. 2000 h Measuring surfaces made of CBN on request Packing stable box
