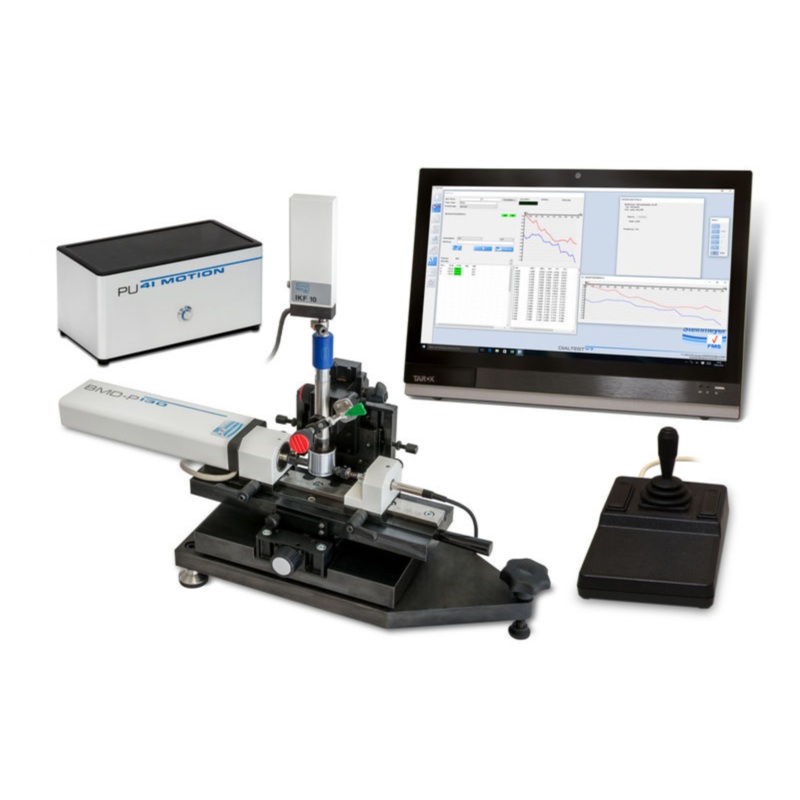

Steinmeyer BMD-P 130 Plug Gauge Test Instrument
High-precision calibration system as 2-point measurement for checking and calibrating plug gauges, internal measuring tools and probes, blind hole probe and measuring probe for internal gearing
- Suitable for diametrical probe areas up to 130 mm diameter
View Data Sheet
Contact our Sales Department for a demonstration or quotation.

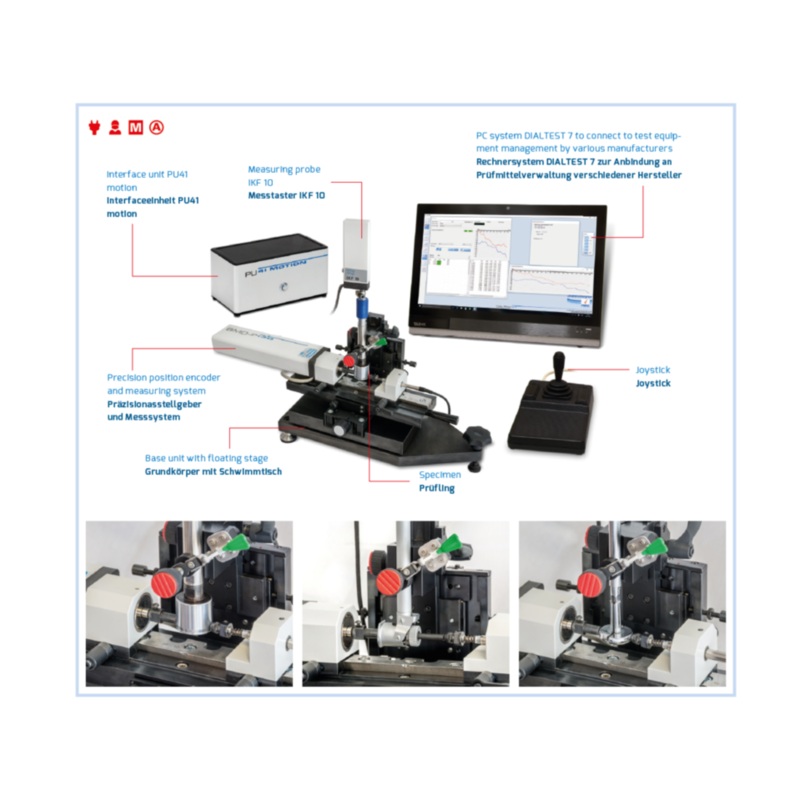

System description
- The KLM 120 has a measuring table with 3-axis adjustment and additional tilt and rotation functions and can be loaded up to 3 kg.
- A floating table enables the moment-free positioning of the measuring object.
- The separate PU41 interface unit with USB connection transmits the measurement data of the X, Y, and Z axes to the PC.
- The intelligent measured value processing with the IQ-Basis software from AHP or QM-Soft offer standard-compliant, ready-made test programs and provide a final test report that can be individually adapted if required.
- With the extensive range of standard accessories, a large part of all measuring tasks can be realized immediately. In addition, special accessories such as floating tables or quick-clamping elements as well as thread testing sets are available to expand the range of applications – for simple and economical calibration.
Technical data
- Application range up to 130 mm
- Height of probe areas above the guide 20 mm
- Direct Application range 30 mm
- Resolution 0,01 m
- Diameter of the probe shaft 4 – 21 mm
- Weight 12 kg
Benefits
- Fully automatic or manual measurements
- For internal probes with diametrical probe areas
- Relative and absolute measurements possible
- The test set-up corresponds to VDI/VDE/DGQ 2618 sheet 13.2
- Mobile application thanks to a compact design
- Automatic logging based on the control and analysis software DIALTEST 7
- Very high measuring accuracy at fast measuring speed by using a motor and a passive probe which is located in the horizontal measuring axis
- Manual entry of measured values is possible
