Description

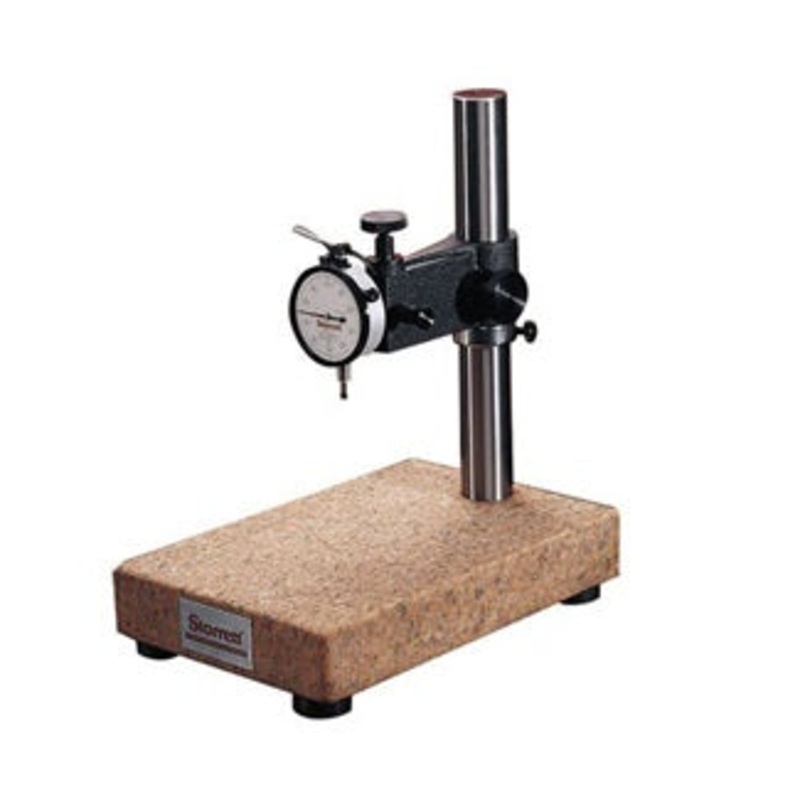

These bench-type comparator gages are ruggedly built for in-process and final inspection work.
The dial indicator can be adjusted vertically and locked in any position. A sliding ring with locking screw below the beam permits swinging the indicator to either side.
The ring also acts as a safety device preventing the beam from accidentally dropping.
There is a fine adjustment on the beam for final indicator setting.
The hand lifting lever on the indicator raises the spindle and releases it to contact the work.
A left hand lever is furnished unless specified otherwise.

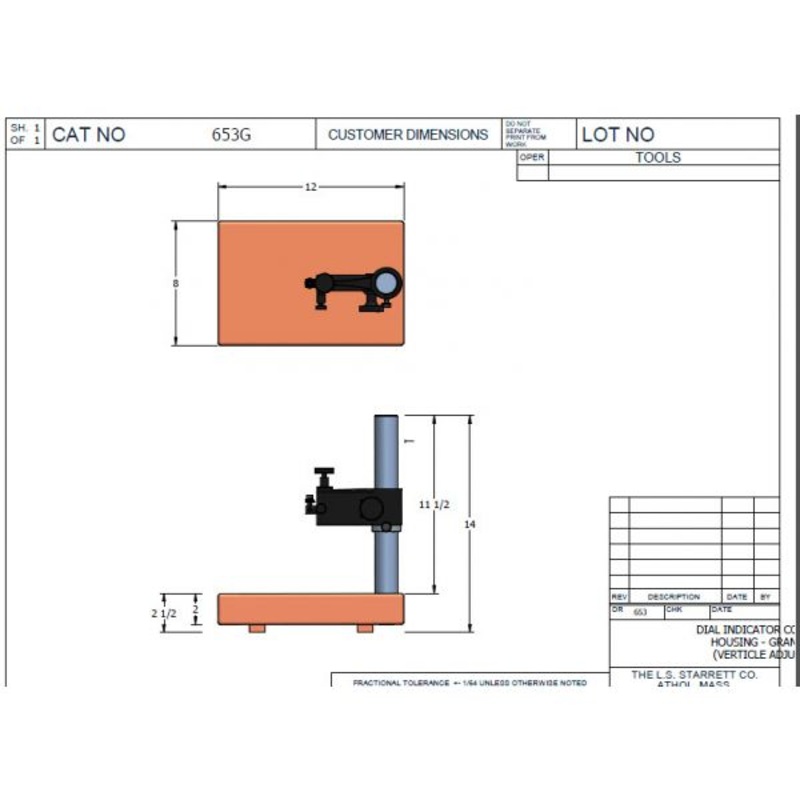

Maximum vertical capacity of 9 1/4″ (235 mm) and a throat depth of 5″ (125 mm) and a vertical indicator fine adjustment of up to 1/2″ (12.7 mm).
Post diameter is 1 1/2″.
No. 653G Series have a Starrett Grade A Crystal Pink Granite base measuring 8″ x 12″ x 2″ (200 x 300 x 50 mm).
Base is finished to an overall tolerance of .0001″ (0.0025 mm).
Indicator not included in price.
