Description

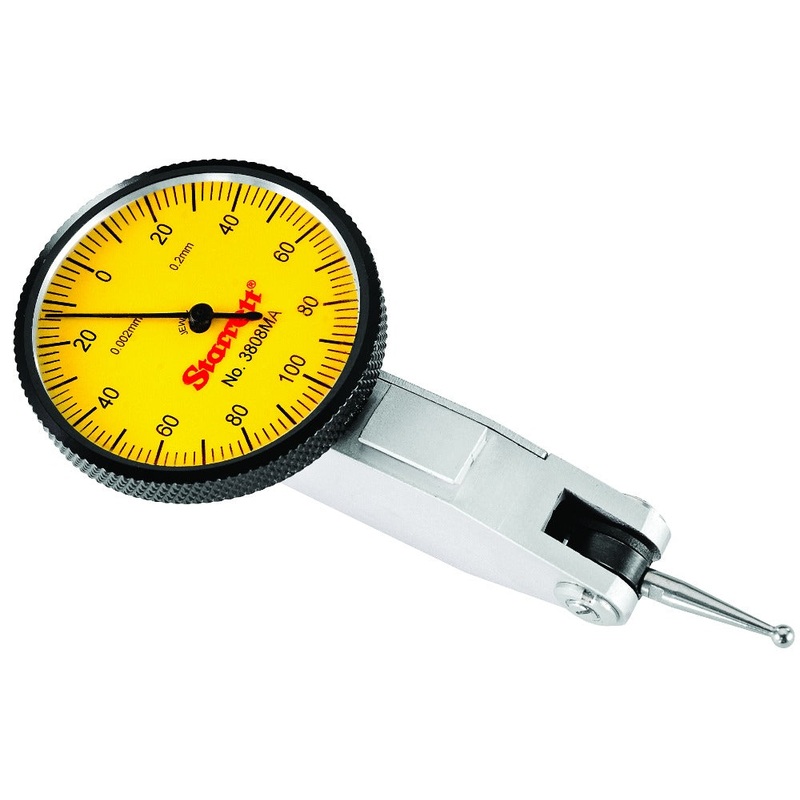

These dial test indicators are offered with choices of dial size, range and include accessories.
All 3808 and 3809 models have 1-1/4 (32mm) dial faces while 3908 and 3909 models offer a larger 1-9/16 (40mm) dial face.
Each inch reading and metric reading 3808 and 3809 is offered with a choice of two Graduation/Range/Reading configurations.
- Precision gear-driven design with smooth, jeweled movement
- Frictionally adjustable contact point reverses automatically, always maintaining clockwise hand rotation
- Meets or exceeds ANSI/ASME accuracy specifications
- High contrast, easy-to-read dials with yellow background for metric
- Grad: 0.002mm
- Range: 0.2mm
- Dial Reading: 0-100-0
- Dial Diameter: 32mm
- Description: indicator, 4mm contact point, 9.5mm and 4mm dovetail clamps, 4mm swivel post holder, tool post holder, contact wrench and case
