Description

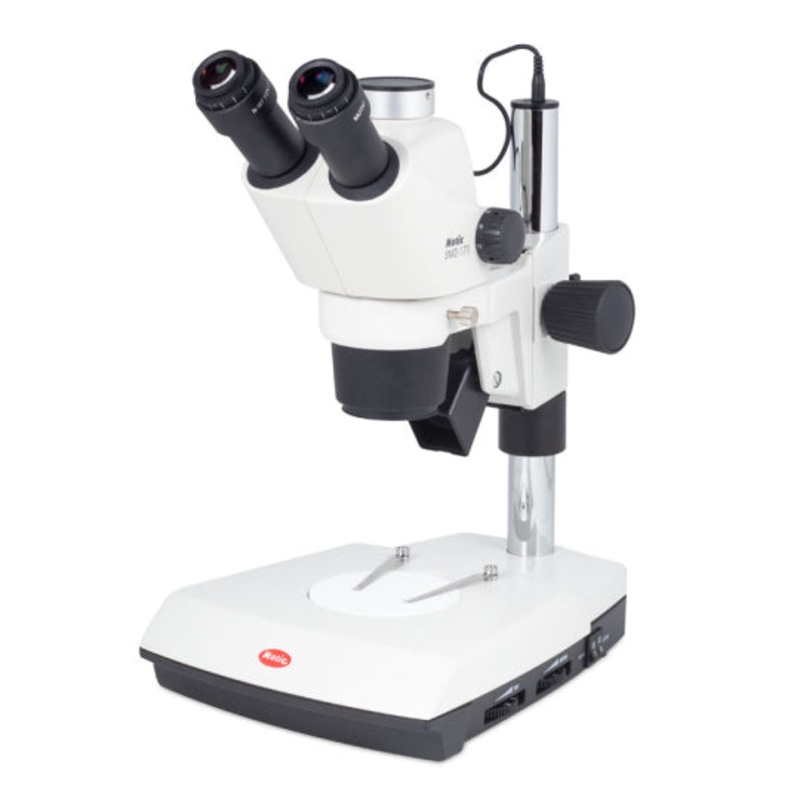

A flexible stereo microscope for advanced research work in biomedicine and industrial quality control. The Greenough optical system delivers impressive 3-D images in a zoom of 6.7:1, giving a magnification range of 7.5X-50X in the standard setup. The implemented click-stops allow precise reproduction of magnification. The photo port allows an adaption of a digital camera for measurements through software.
| Observation tube |
Trinocular head |
| Optical system |
Greenough |
| Inclination |
45 inclined |
| Trinocular light split |
Fixed 50:50 |
| Interpupillary distance |
52-75mm |
| Diopter adjustment |
On both eyepieces, +/- 5 diopter |
| Eyepieces |
Widefield N-WF10X/23mm with diopter adjustment |
| Objectives system |
Zoom, ratio 6.7:1 |
| Objectives |
0.75X~5X |
| Working distance |
110mm |
| Stand type |

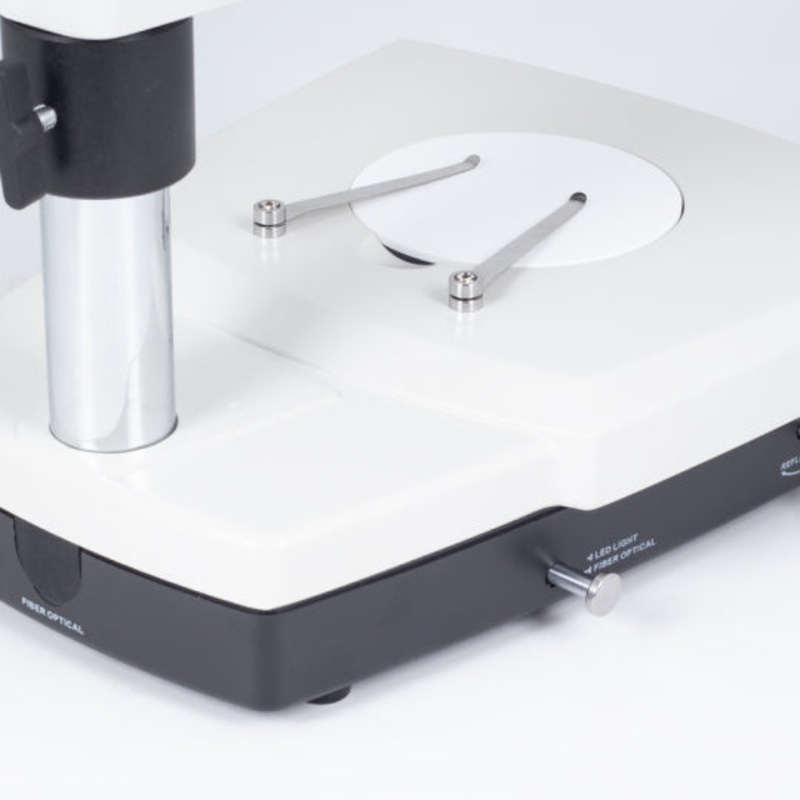

Pole type stand with transmitted illumination |
| Head holder |
For 32mm column and 76mm head |
| Focus mechanism |
Coarse focusing system with tension adjustment |
| Focusing stroke |
49mm |
| Incident illumination |
LED 3W with intensity control |
| Transmitted illumination |
LED 3W with reflector and intensity control |
| Illumination features |
Transmitted light with tilting reflector for oblique illumination |
| Transformer |
External |
| Power supply |
100-240V (CE) |
| Accessories included |
Dust cover, black/white and frosted stage plates |
| Dimensions LxWxH |
303x239x405mm |
| Base |
303x239mm |
| Column/Arm |
Height 232mm, 32mm |
| Weight Net |
6.2kg |
| Contrast techniques |
| Standard contrast technique |
Brightfield |
| Polarization |
Optional add-on |
| Darkfield |
Optional add-on |
