Description

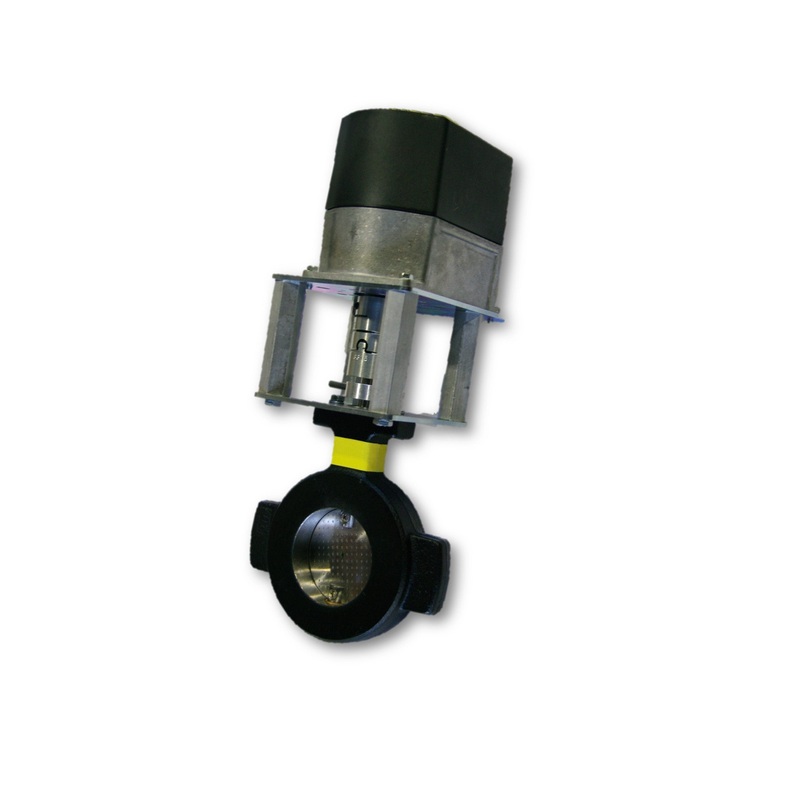

Here we have a wealth of Valve-Actuator Assemblies variations. VA Assemblies are available with the following actuators:

• SQM33 actuators with LMV3 Linkageless systems
• SQM45 or SQM48 actuators with LMV5 Linkageless systems
• SQM40/41 Synchro Modulating Actuators
• SQM50/53/56 Modulating Actuators

Connecting to the following Valve lines:

• VKG Threaded Butterfly Valves
• VRG Biogas Butterfly Valves
• VKF Flanged Butterfly Valves
• VKP Characterized Valves
• Hauck Oil Valves

Please Call or email for assistance regarding ordering an Assembly.

High Quantities and less-common models may take an additional 10 days for shipment. Contact us via phone or Email to request more information on availability.

Here are some popular examples of Assemblies:

• VA40.25-NF-100 – SQM40.255R11, 30 Sec, 4-20mA, to 1″ VKG Full Port Valve
• VA40.15-NF-300 – SQM40.155R11, 15 Sec, 120Vac, to 3″ VKF Full Port Valve
• VA45.2-4.0VKF – SQM45.295B9, 10 Sec, to 4″ VKF Full Port Valve
• VA45.2-NF-200 –SQM45.295B9, 10 Sec, to 2″ VKG Full Port Valve
• VA45.2-NR-400–SQM45.295B9, 10 Sec, to 2″ VKG Reduced Port Valve
• VA48.4-F.5-24 – SQM48.497A9 to F-1/2-24 Oil Module Valve
• VA50.2-NF-075 – SQM50.264R1G3, 8 Sec, 4-20mA, to 3/4″ VKG Full Port Valve
• VA50.4-6.0VKF – SQM50.461R1G3, 25 Sec, 4-20mA, to 6″ VKF Valve
• VA33-S35– SQM33.550A9 to 3/8″ S-3-5D-UL Oil Module Valve

Resources:

• Siemens Control Actuator and VAs Tutorial / Training Videos

• VA Assemblies with VKG Valve Technical Literature
• VA Assemblies with VRG Valve Technical Literature
• VA Assemblies with VKF1 Valve Technical Literature
• VA Assemblies with VKF4 Valve Technical Literature
• VA Assemblies with VKF1 Valve Technical Literature
• VA Assemblies with VKP Valve Technical Literature
• VA Assemblies with PBA Valve Technical Literature

• VA Assemblies with WBV Valve Technical Literature
• VA Assemblies with Hauck Oil Valve Technical Literature
• VA Assemblies with Gxx Series Electronic Actuator Technical Literature

• LMV36 / AGM60 Technical Literature.

• LMV37 Technical Literature
• LMV3 Burner Control Training / Turorial Video

• LMV5 Burner Management System Quick Start Guide / Technical Instructions
• LMV5 Burner Control Tutorial / Training Videos

• LME7 Technical Literature
• LME7 Flame Safeguard Tutorial / Training Videos
