Description

Please call or email for information regarding part numbers and prices not already listed.

High Quantities and less-common models may take an additional 10 days for shipment. Contact us via phone or Email to request more information on availability.

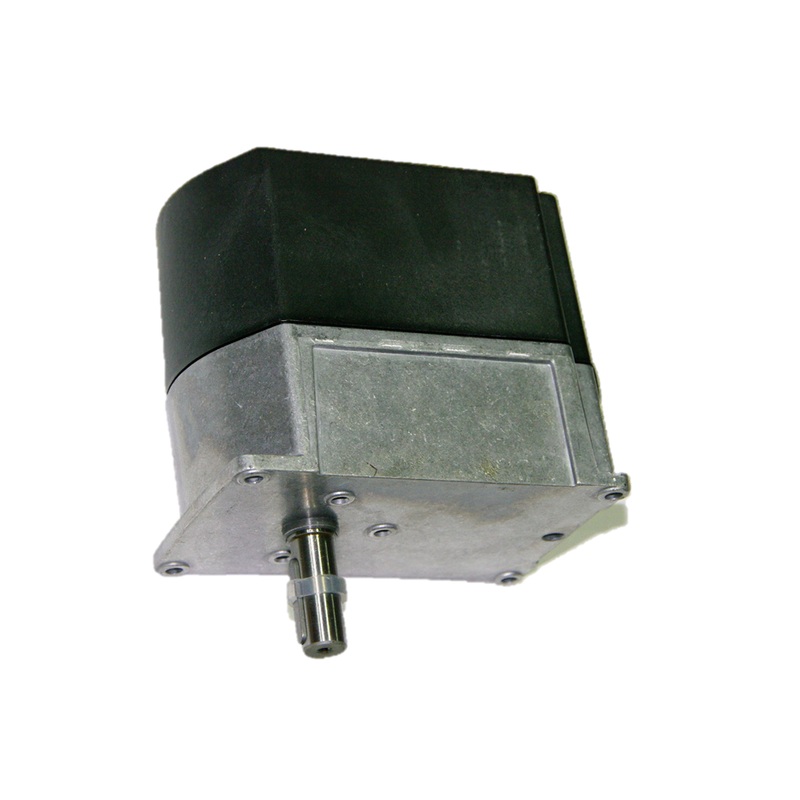

The SQM40…/SQM41… actuators are suited for driving oil pressure controller, butterfly valves, dampers or for use on other applications that require rotary motion. Areas of application are oil and gas burners of medium to higher capacity as well as thermal process plants.

The actuators are used primarily for load-dependent control of the flow of gas, oil and combustion air:

• In connection with 3-position or modulating controllers (e.g. 4…20 mA), and/or…

• Directly by burner controls

Features:

• Electromotoric actuator up to 18 Nm torque
• Clockwise and counterclockwise variants
• Running times from 5 up to 65 seconds

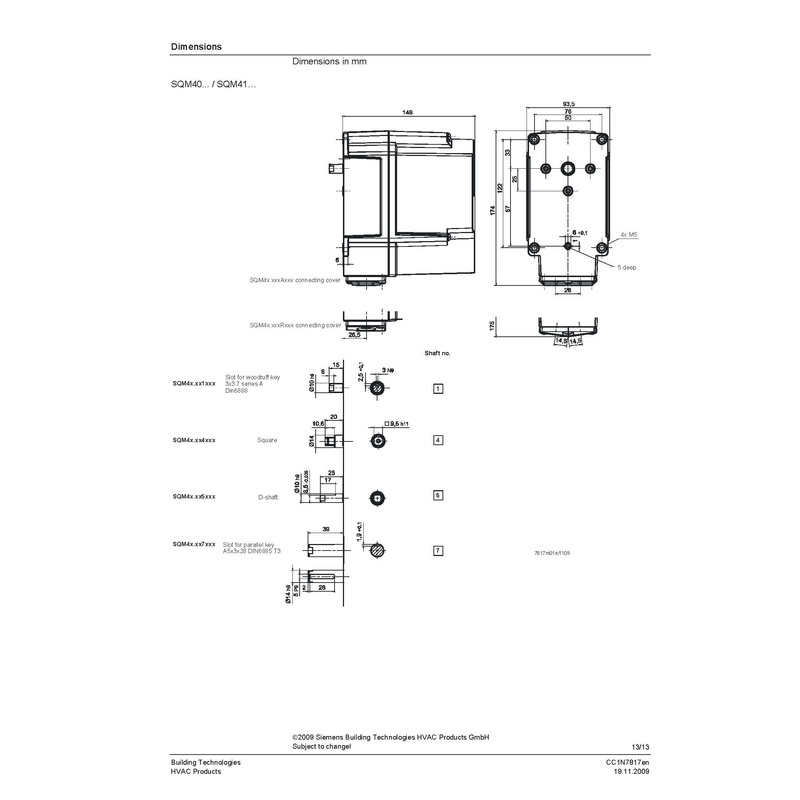

• Different shaft ends available
• Electronic version with analog control input
• Internal position indication
• Drive shaft can be disengaged
• Variants with UL and CSA approval, as well as GL marine approval

Accessories:

• Siemens Couplings
• Siemens Brackets
• CA Series Crank Arm Assembly (Coming Soon)
• Siemens AGA94.1 Bracket kit – SQM40/41 Actuator to Dungs DMK Butterfly Valve

Variant models:

Please Call or email regarding SQM40/41 Models that are not listed. We can help you find the exact model and specifications you are looking for.

See Product Number Identification List Here.

Available Models:

• SQM40.145R11– Anticlockwise rotation, 45 “/lb Torque (12 seconds), 3 Switches, 10mm D type shaft, 120Vac @ 50-60 Hz, Single 1000 Ohms 90 Potentiometer
• SQM40.155R11– Anticlockwise rotation, 45 “/lb Torque (12 seconds), 4 Switches, 10mm D type shaft, 120Vac @ 50-60 Hz, Single 1000 Ohms 90 Potentiometer.
• SQM40.241R11– Anticlockwise rotation, 90 “/lb Torque (25 seconds), 3 Switches, 10mm woodruff shaft, 120Vac @ 50-60 Hz, Single 1000 Ohms 90 Potentiometer
• SQM40.244R11– Anticlockwise rotation, 90 “/lb Torque (25 seconds), 3 Switches, HW Square type shaft, 120Vac @ 50-60 Hz, Single 1000 Ohms 90 Potentiometer
• SQM40.245R11– Anticlockwise rotation, 90 “/lb Torque (25 seconds), 3 Switches, 10mm D type shaft, 120Vac @ 50-60 Hz, Single 1000 Ohms 90 Potentiometer
• SQM40.255R11– Anticlockwise rotation, 90 “/lb Torque (25 seconds), 4 Switches, 10mm D type shaft, 120Vac @ 50-60 Hz, Single 1000 Ohms 90 Potentiometer
• SQM40.265R11– Anticlockwise rotation, 90 “/lb Torque (25 seconds), 6 Switches, 10mm D type shaft, 120Vac @ 50-60 Hz, Single 1000 Ohms 90 Potentiometer
• SQM41.254R11– Clockwise rotation, 90 “/lb Torque (25 seconds), 4 Switches, HW Square type shaft, 120Vac @ 50-60 Hz, Single 1000 Ohms 90 Potentiometer
• SQM41.145R11– Clockwise rotation, 45 “/lb Torque (12 seconds), 3 Switches, 10mm D type shaft, 120Vac @ 50-60 Hz, Single 1000 Ohms 90 Potentiometer
• SQM41.244R11 – Clockwise rotation, 90 “/lb Torque (25 seconds), 3 Switches, HW Square type shaft, 120Vac @ 50-60 Hz, Single 1000 Ohms 90 Potentiometer
• SQM41.285R11 – Clockwise rotation, 90 “/lb Torque (25 seconds), 3 Switches, HW Square type shaft, 120Vac @ 50-60 Hz, Double 1000 Ohms 90 Potentiometer

Resources:

• SQM40 / SQM41 Actuators Technical Instructions
• Siemens Control Actuator and VAs Tutorial / Training Videos
• SQM40/41 Product Number Identification Legend
• Eclipse TrilogyT500 actuators to Siemens SQM4x actuators Cross Reference
