Description

The actuators SQM33 are suited for driving oil pressure controllers, butterfly valves, dampers or for use on other applications that require rotary motion. Areas of application are oil and gas burners of medium to larger capacity.

The actuators are used primarily for the load-dependent control of the flow of gas, oil volume, and combustion air volume in connection with the electronic ratio control LMV27 / LMV37

High Quantities and less-common models may take an additional 10 days for shipment. Contact us via phone or Email to request more information on availability.

Accessories:

• Siemens Couplings
• Siemens Brackets
• CA Series Crank Arm Assembly

Part Numbers:

• SQM33.410A9 – 11″/lb Rated Output Torque, 5′ Cable
• SQM33.411A9 – 11″/lb Rated Output Torque, 10′ Cable
• SQM33.510A9 – 27″/lb Rated Output Torque, 5′ Cable
• SQM33.511A9 – 27″/lb Rated Output Torque, 10′ Cable
• SQM33.550A9 – 27″/lb Rated Output Torque, 12′ Cable
• SQM33.711A9 – 90″/lb Rated Output Torque, 10′ Cable

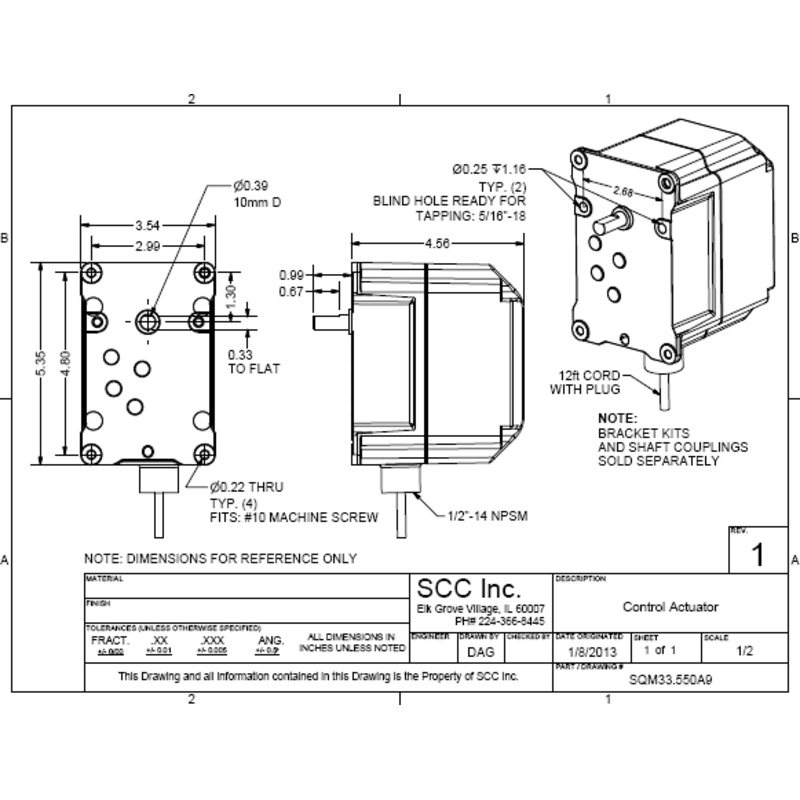

• SQM33.750A9 – 90″/lb Rated Output Torque, 12′ Cable

Resources:

• SQM33 Actuators Technical Instructions
• LMV36 / AGM60 Technical Literature
• LMV37 Burner Control Technical Literature
• LMV3 Burner Control Training / Turorial Videos

Siemens Control Actuators and VAs Tutorial Video:

View all Actuator Videos here
