Description
Sheet Metal Micrometer
A Mitutoyo non-digital micrometer provided with a deep frame to enable measurement of sheet metal thickness farther from the edge of a sheet than is possible with a standard micrometer. A ratchet stop guarantees repeatable measurement.
- Range: 25-50mm
- Resolution: 0.01mm
- Accuracy: 0.004mm
- Flatness: 0.0006mm
- Parallelism: 0.003mm
- Measuring force: 8N or less

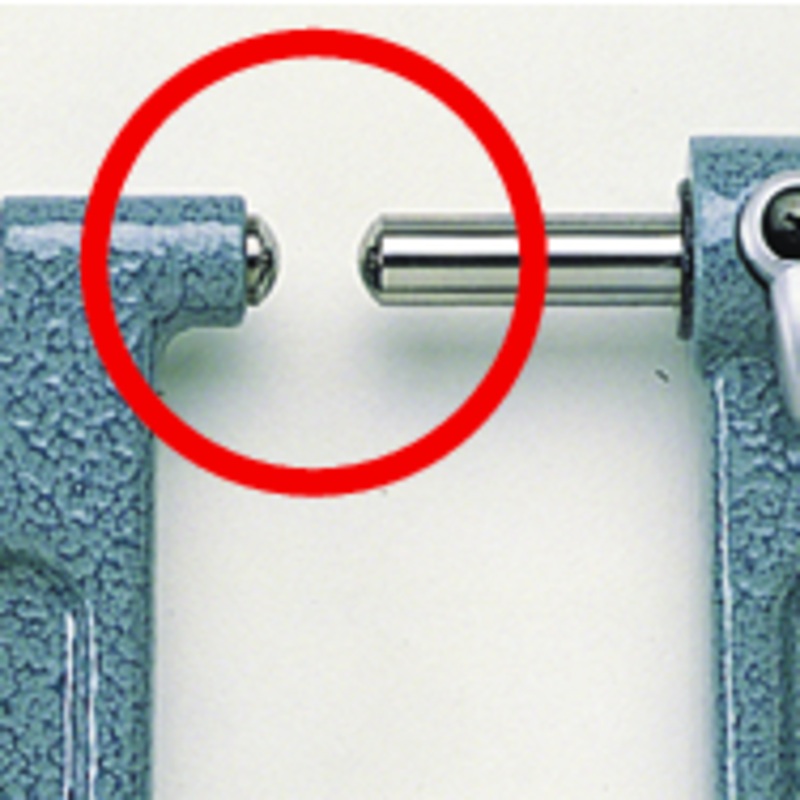

- Anvil Type: C, Spherical/spherical
- Throat depth: 150mm
- Measuring face: Carbide-tipped, micro-lap finish
- Thimble and Sleeve scale satin chrome finish 18mm
- With spindle lock: 6.35mm diameter, spindle pitch 0.5 mm
- Ratchet Stop
