Sheet Metal Micrometer 1-2, Flat Anvil & Spindle, 6Throat 118-112 Type A (F-F)

Original price was: $169.40.Current price is: $84.70.

SKU: TEEYlB2zOsqg5 Category:

Description

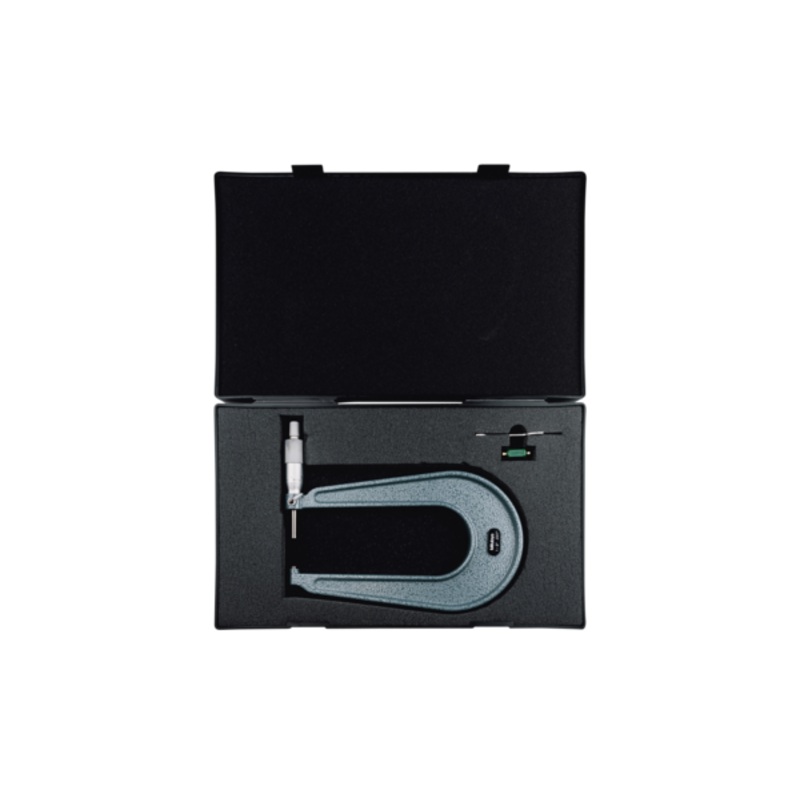

A Mitutoyo non-digital micrometer provided with a deep frame to enable measurement of sheet metal thickness farther from the edge of a sheet than is possible with a standard micrometer. A ratchet stop guarantees repeatable measurement.

Specification

Digital/Analog: Analog

Delivered: Including box, spanner, setting standard

Inch-Metric: Inch

Range: 1 – 2

Graduation: 0,001″

Max.
Permissible Error
J MPE:
0,0002″

Parallelism: 0,00012″

Measuring face: Carbide-tipped, micro-lap finish

Anvil / Spindle: Type A, flat/flat

Measuring spindle: With spindle lock, throat depth 150 mm : 6,35 mm
throat depth =300 mm : 8 mm, spindle pitch 0,5 mm

Scale: Thimble and sleeve satin chrome finish, 18 mm

Measuring force: 3 – 8 N

Delivered: Including box, key, setting standard (from 25 mm upward)

Mass: 820 g
