Sheet Metal Micrometer 0-1, Spherical Anvil/Spindle, 6 Throat 118-120 Type C (S -S )

Original price was: $169.40.Current price is: $84.70.

SKU: TEELHM2DQrIC6 Category:

Description

A Mitutoyo non-digital micrometer provided with spherically radiused spindle-end and anvil and a deep frame to enable measurement of sheet metal thickness farther from the edge of a sheet than is possible with a standard micrometer. A ratchet stop guarantees repeatable measurement.

Specification

Digital/Analog: Analog

Delivered: Including box, spanner

Inch-Metric: Inch

Range: 0 – 1

Graduation: 0,0001″

Max.
Permissible Error
J MPE:
0,0002″

Parallelism: 0,00012″

Measuring face: Carbide-tipped, micro-lap finish

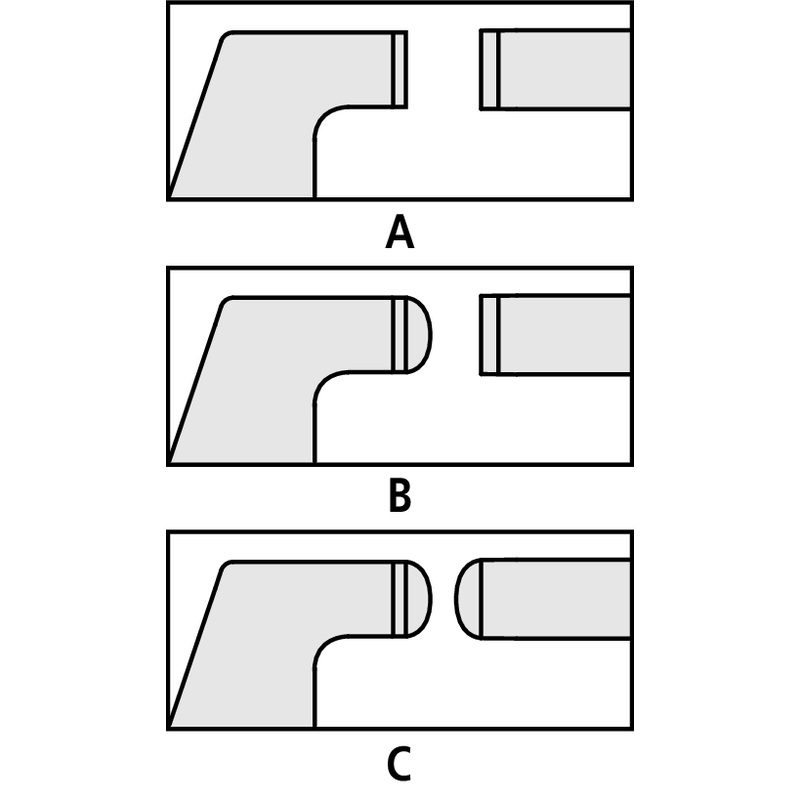

Anvil / Spindle: Type C, spherical/spherical

Measuring spindle: With spindle lock, throat depth 150 mm : 6,35 mm
throat depth =300 mm : 8 mm, spindle pitch 0,5 mm

Scale: Thimble and sleeve satin chrome finish, 18 mm

Measuring force: 3 – 8 N

Delivered: Including box, key, setting standard (from 25 mm upward)

Mass: 740 g
