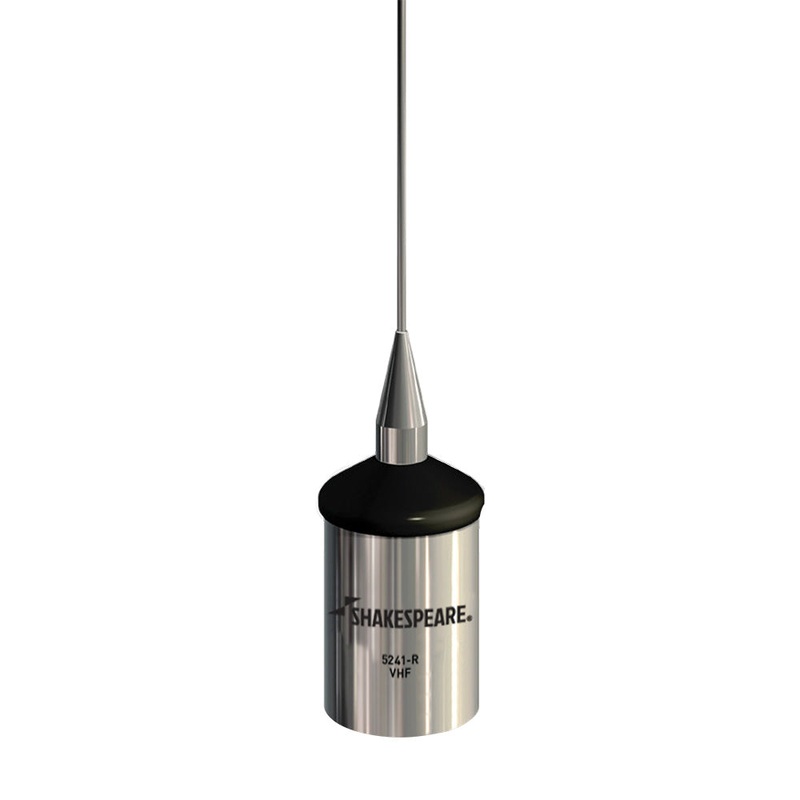

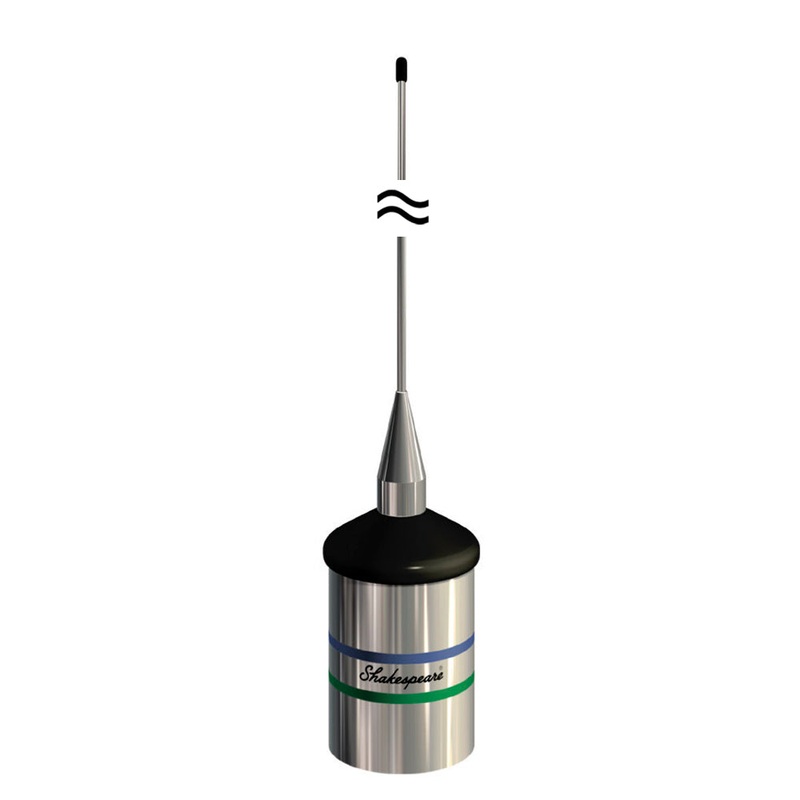

Shakespeare 5241 3′ VHF Antenna [5241-R]

Description

Shakespeare Style 5241-R VHF Marine
36″ LENGTH 3dB
LOW PROFILE END-FED 1/2-WAVE WITH HEAVY-DUTY WHIP

The perfect choice for bass boats, center console fishing boats, or any vessel where compact size is most important. Comes with a heavy-duty stainless steel whip for extra stability at high speeds. Chrome plated brass canister minimizes de-tuning.

• Sealed, tin-plated copper wire coil
• Requires mount with center hole for passage of the supplied 15′ RG-58 cable.
• PL-259 connector included
• Stainless steel whip (36″)
• Suggested mount: Shakespeare Styles 4187, 4188-S, or 4190 Ratchet Mounts
• Shakespeare Limited Warranty: 2 years

Technical Specifications:

Frequency: VHF Marine Band Bandwidth: 7 MHz SWR: 1.5:1 at 156.8 MHz Radiation pattern: Omni-directional Gain: 3 dB Max Input (Watts): 50 watts DC Ground: YES Height (feet): 3 Polarization: Vertical

Specifications:

• Antenna Band: VHF
• Color: Stainless
• Construction: Stainless Steel
• Length (Inches): 36″
• Box Dimensions: 3″H x 3″W x 40″L WT: 2.5 lbs
• UPC: 719441100452
