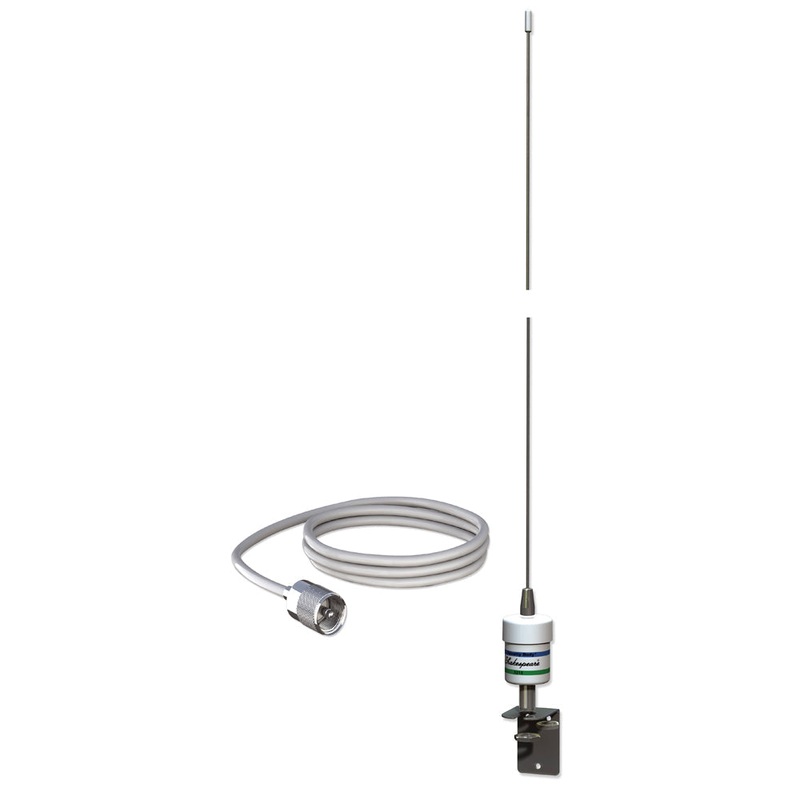

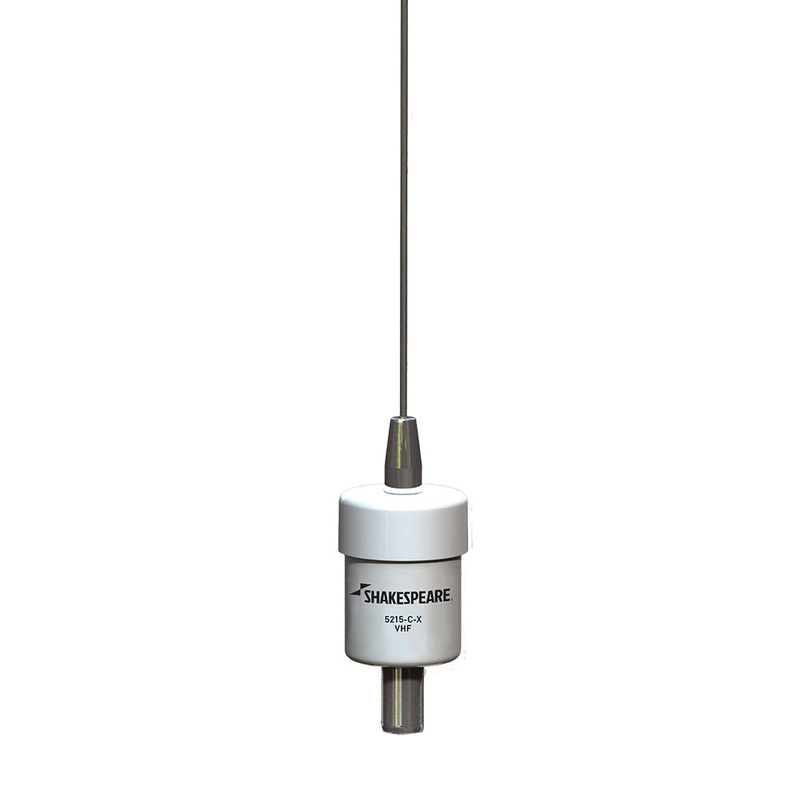

Shakespeare 5215-C-X 3′ VHF Antenna [5215-C-X]

Description

Shakespeare Style 5215-C-X SQUATTY BODY VHF Marine
36″ LENGTH, 3dB

END-FED 1/2-WAVE STAINLESS STEEL WHIP

Same as the Style 5215 but comes with 60′ RG-8/X low-loss cable and PL-259 connectors.

A favorite with Sailboat owners, this lightweight, low profile, stainless steel antenna is specially designed for masthead mounting.

• Hermetically sealed, tin-plated copper wire coil
• Stainless steel body and whip
• SO-239 connector
• Includes 60′ RG-8/X low-loss cable and PL-259 connectors.
• Mount: Stainless steel “L” bracket supplied, for mast mounting
• One section
• Shakespeare Limited Warranty: 2 years

Technical Specifications:

Frequency: VHF Marine band Bandwidth: 7 MHz SWR: 1.5:1 @ 156.8 MHz Impedance: (Ohms): 50 Gain: 3 dB Max Input (Watts): 50 DC Ground: NO Termination: 60′ RG-8X cable Height (feet): 3′ Polarization: Vertical Radiation pattern: Omni-directional

Specifications:

• Antenna Band: VHF
• Color: Stainless
• Construction: Stainless Steel
• Length (Inches): 36″
• Box Dimensions: 4″H x 4″W x 44″L WT: 4.2 lbs
• UPC: 719441100155

Quick Guide (pdf)
