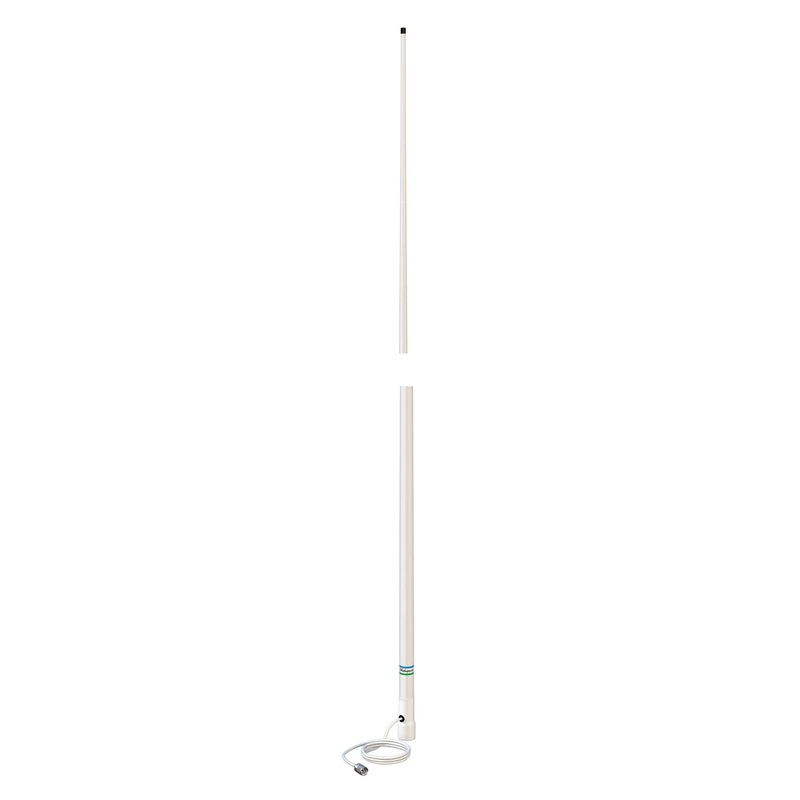

Shakespeare 5206-N 8′ VHF Antenna [5206-N]

Description

Shakespeare Style 5206-N VHF Marine – Reduced Length Version

8′ LENGTH 6dB

END-FED WITH MATCHING STUB

Same as the Style 5206-C, but the 5206-N has a nylon ferrule.

An economical and lightweight, self-supporting antenna for good communications where range is not the predominant factor.

• Quality copper cable elements for good range and efficiency
• Nylon ferrule with standard 1″-14 thread
• Includes 15′ RG-58 cable and a PL-259 connector
• Suggested mount: Shakespeare Style 495 Lift-n-Lay Mount or Style 4186 Ratchet Mount
• Twin to: Shakespeare Styles 5205 and 5207 CB Marine antennas
• One section
• Shakespeare Limited Warranty: 2 years

Technical Specifications:

Frequency: VHF Marine band Bandwidth: 3 MHz SWR: 1.5:1 @156.8 MHz Impedance: (Ohms): 50 Gain: 6 dB Max Input (Watts): 50 DC Ground: NO – the antenna will read “open circuit” when checked with an ohm meter or continuity tester. Termination: RG-58 Height (feet): 8 Polarization: Vertical Radiation pattern: Omni-directional

Specifications:

• Antenna Band: VHF
• Color: White
• Construction: Fiberglass
• Ferrule Type: Nylon
• Length (Inches): 96″
• Box Dimensions: 3″H x 3″W x 95″L WT: 2.4 lbs
• UPC: 719441100186
