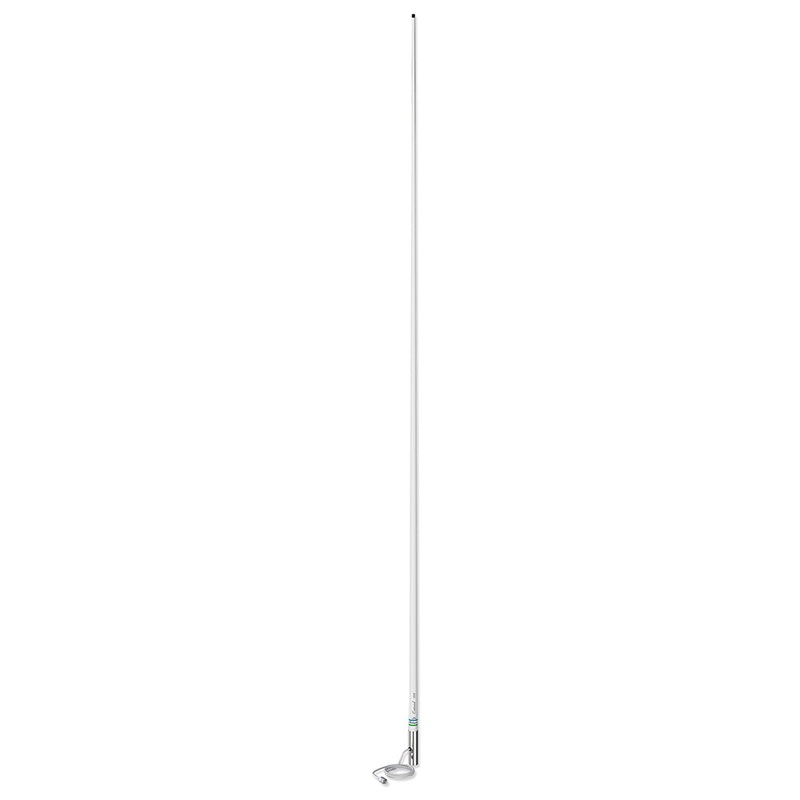

Shakespeare 5101 8 Classic VHF Antenna w/15′ RG-58 Cable – White [5101]

Description

5101 8 Classic VHF Antenna with 15′ RG-58 Cable – White – Reduced Length Version

END-FED WITH MATCHING STUB

A standard of excellence in an economical antenna! Shakespeare brings you the best of the high-end features in an 8′ antenna with a brass element and a smooth, high-gloss, polyurethane finish that won’t turn yellow in the sun. This antenna delivers not only performance, but superb value.

Features:

• Brass and copper elements
• Chrome-plated brass ferrule with standard 1″-14 thread
• Includes 15′ RG-58 cable and a PL-259 connector
• Suggested mount: Shakespeare Style 4187 Ratchet Mount, or use a Shakespeare Style 410-R Mounting Kit plus a Style 4008 Extension Mast to form a 16′ antenna system
• One section
• Shakespeare Limited Warranty: 2 years

Technical Specifications:

• Frequency: VHF Marine Band
• Bandwidth: (within 2.01 SWR): 5 MHz
• SWR: 1.5:1 at 156.8 MHz
• Impedance: (Ohms): 50
• Gain: 6 dB
• Max. Input (Watts): 50
• DC Ground: YES – however, the antenna will read “open circuit” when tested with an ohmmeter.
• Termination: 15′ RG-58 cable
• Height (feet): 8′
• Polarization: Vertical
• Radiation pattern: Omni-directional

Specifications:

• Antenna Band: VHF
• Color: White
• Construction: Fiberglass
• Ferrule Type: Chrome Plated
• Length (Inches): 96″
• Box Dimensions: 2″H x 2″W x 95″L WT: 3.65 lbs
• UPC: 719441100490

Quick Guide (pdf)
