Shakespeare 396-1-AIS Broadband VHF for AIS System [396-1-AIS]

Description

Shakespeare Style 396-1-AIS VHF Marine AIS
4′ LENGTH 3dB

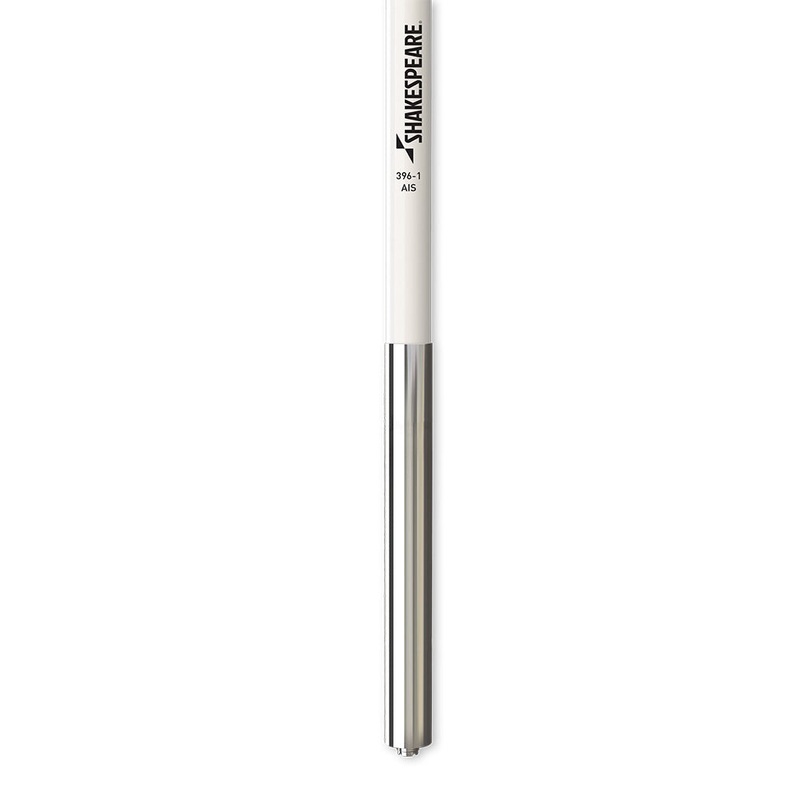

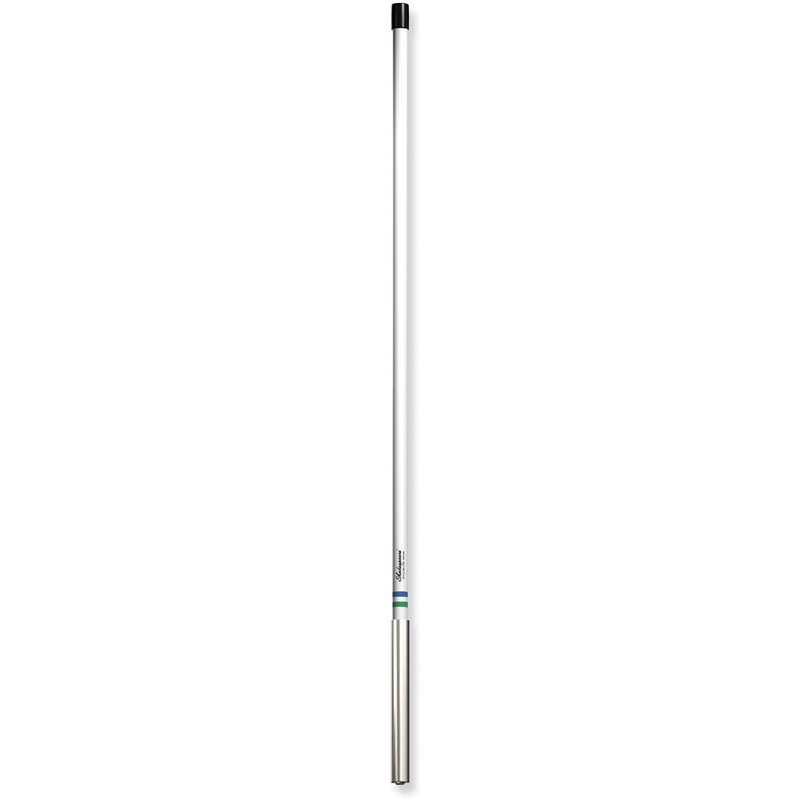

4′ MAST MOUNT AIS ANTENNA

The 396-1-AIS has been specially designed to meet the broader bandwidth requirements of all popular AIS transceivers. Commercial-grade construction with a mast mounting sleeve.

• Brass and copper elements
• SO-239 connector at the base
• Suggested Mount: U-Bolts included. Can be strapped to a larger mast using steel banding (not supplied)
• One section
• Coax cable sold separately
• Shakespeare Limited Warranty: 2 years

Technical Specifications:

• Frequency: VHF Marine Band
• Bandwidth within 2.0:1 SWR: 6.0 MHz
• SWR: 1.5:1 at 156.8 MHz
• Gain: 3dB
• Impedance (Ohms): 50
• Gain: 3dB
• Max. Input (Watts): 100
• DC Ground: no (will read open-circuit with ohmeter test)
• Termination: SO-239 at bottom of antenna
• Height (feet): 4
• Polarization: Vertical
• Radiation pattern: Omni-directional

Specifications:

• Antenna Band: VHF
• Color: White
• Construction: Fiberglass
• Length (Inches): 48″
• Box Dimensions: 3″H x 3″W x 55″L WT: 3 lbs
• UPC: 719441170585

Quick Guide (pdf)
