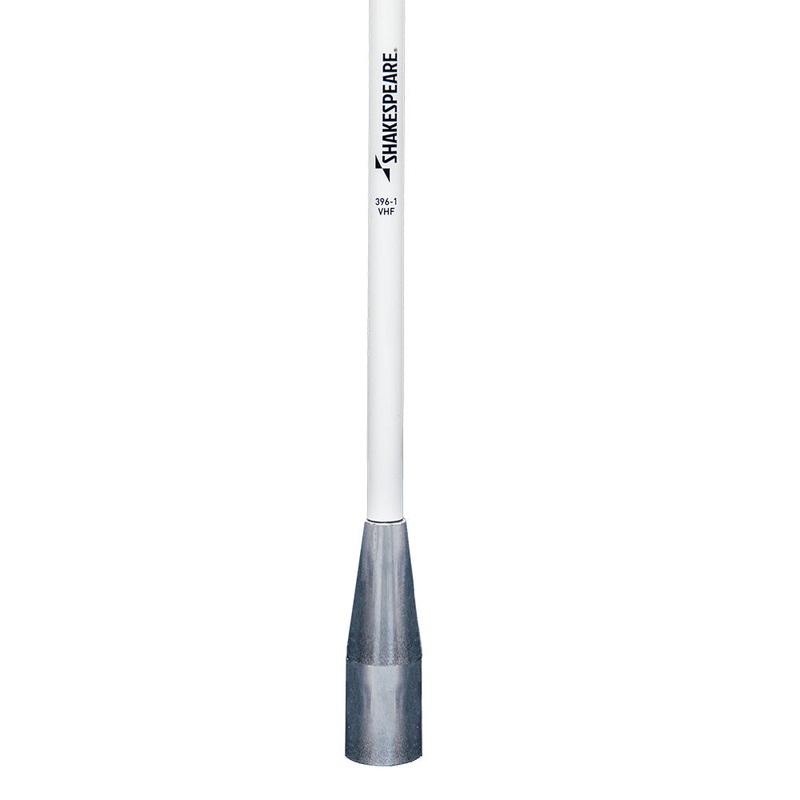

Shakespeare 396-1 5′ VHF Antenna [396-1]

Description

Style 396-1 VHF 3dB

Center-fed 1/2-wave coaxial sleeve

Outstanding, basic 3dB antenna designed to reduce signal fading in rough seas. This is probably the most widely used antenna on Coast Guard vessels.

• Brass and copper elements
• Chrome-plated brass ferrule with standard 1-14 thread
• Includes 15′ RG-58 cable and a PL-259 connector
• Suggested mount: Style 4187 Ratchet Mount
• One section

Technical Specifications:

Frequency: VHF Marine band Bandwidth: (within 2.0:1 SWR): 5 MHz SWR: 1.5:1 at 156.8 MHz Impedance (Ohms): 50 Gain: 3 dB Max Input (Watts): 50 DC Ground: NO Termination: 15′ RG-58 cable Height (feet): 5 Polarization: Vertical Radiation pattern: Omni-directional

Specifications:

• Antenna Band: VHF
• Color: White
• Construction: Fiberglass
• Ferrule Type: Chrome Plated
• Length (Inches): 60″
• Box Dimensions: 3″H x 3″W x 63″L WT: 2.9 lbs
• UPC: 719441100018

Quick Guide (pdf)
