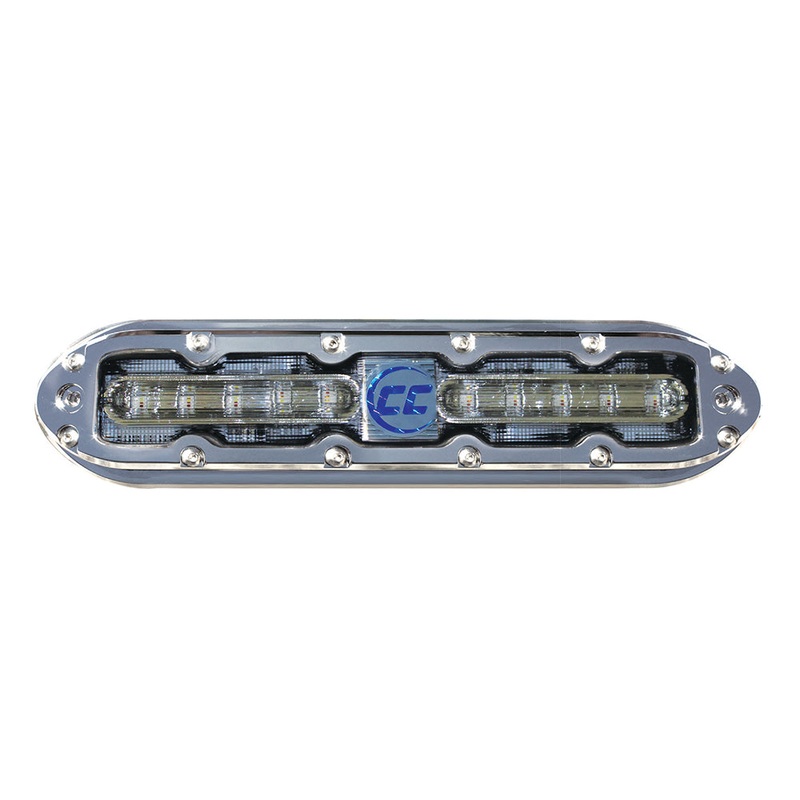

Shadow-Caster Color Caster Extended Multi-Color Underwater Light – 10 Lead Wire [SCM-10-EXT-CC-20]

Description

Color Caster Extended Multi-Color Underwater Light – 10′ Lead Wire

The SCM-10-EXT-CC extended color underwater light provides your vessel with 42 watts of intense LED lighting. Easily switch between 12 standard colors or use an or use a Shadow-NET enabled product to enjoy unlimited colors. The SCM-10-EXT-CCs low profi le design allows for many mounting locations. The unique stainless steel housing compliments the look of any trailer or lift kept boat.

Features:

• Proprietary clear-gel-fi lled design, injected through entire unit eliminates condensation and/or water intrusion under stress
• Tough, polycarbonate lens
• Passivated stainless steel 316 material provides a durable corrosion resistant housing
• Transient surge and reverse polarity protection dramatically prolongs unit life
• Thermal throttling technology enables safe operation even out of water
• From simple on-off to full-feature lighting effects, unit is enabled for a host of control interfaces
• Select between 12 colors when using a switch or unlimited colors when using Shadow-NET enabled products

Specifications:

• Up to 3,750 lumens
• 120 degree beam angle
• 42 watts power draw
• 3.5 amps operating current draw @ 12 volts
• 10-30 volts input
• 10 (254 mm) x 2.4 (61mm) x 0.5 (13mm)
• IP68 fully submersible waterproof design
• 10 RGBW LEDs

Includes:

• Lighting unit
• 10 (6 m) submersible-grade cable
• 2 SS316 1 #8 PH screws
• Standard 2 year warranty

Quick Guide (pdf)
Brochure (pdf)
