Description

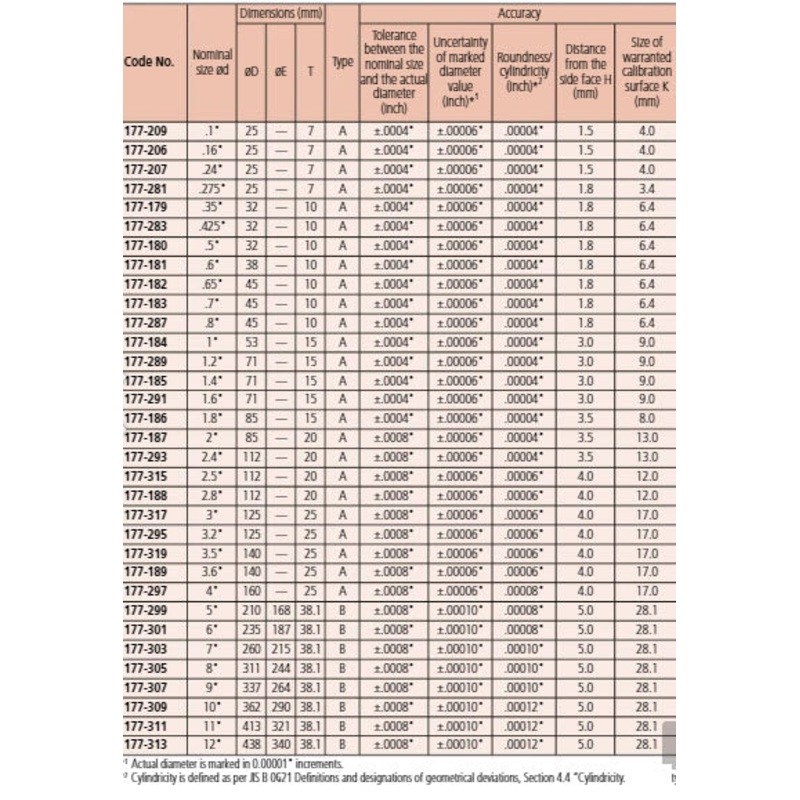

The Mitutoyo 177-299 Steel Setting Ring
- Type: B
- Nominal Size: 5.000
- Tolerance Between Nominal and Actual Diameter: +/- .0008
- Uncertainty of Marked Diameter Value: +/- .0001
- Roundness/Cylindricity: .00008
- Distance from the Side Face (H): 5.00mm
- Side of Warranted Calibration Surface (K): 28.1mm
- Outside Diameter: 210.00mm
- E Dimension for Type B: 168.00mm
- Thickness: 38.1mm/25.4mm
