Description

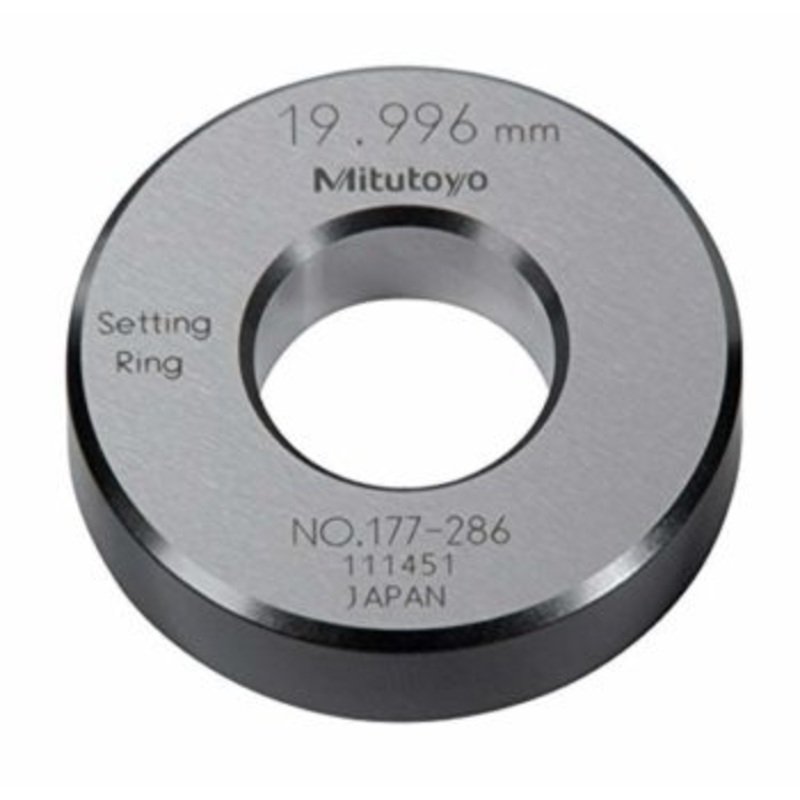

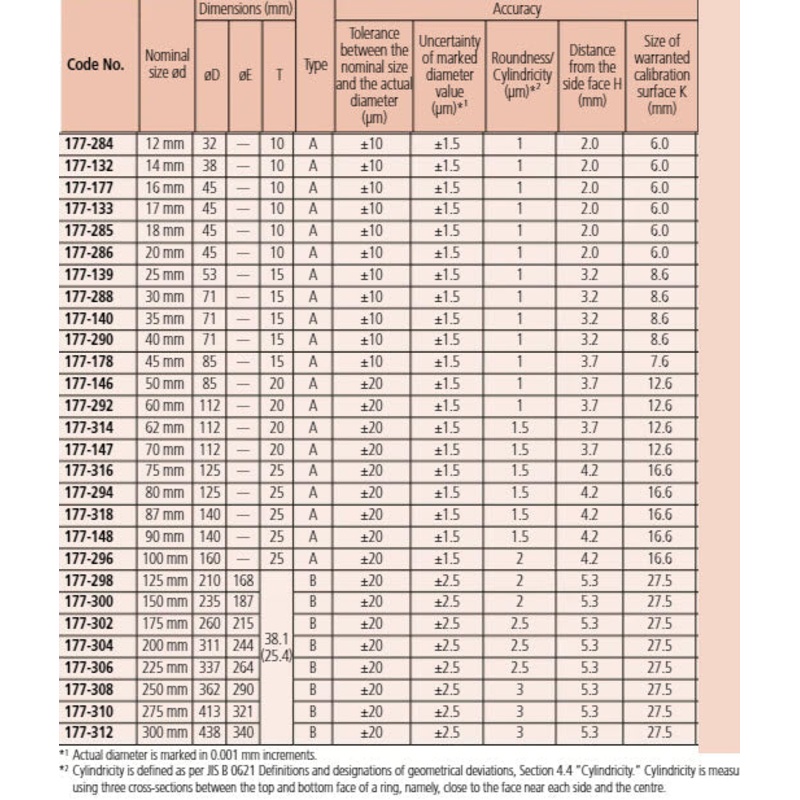

The Mitutoyo 177-286 Steel Setting Ring has the following specifications:
- Nominal Size: 20mm
- Tolerance Between Nominal and Actual Diameter: +/- .010mm
- Uncertainty of Marked Diameter Value: +/- .0015mm
- Roundness/Cylindricity: .001mm
- Distance from the Side Face (H): 2mm
- Side of Warranted Calibration Surface (K): 6mm
- Outside Diameter: 45mm
- E Dimension for Type B: N/A
- Thickness: 10mm
- Type: A
