Description

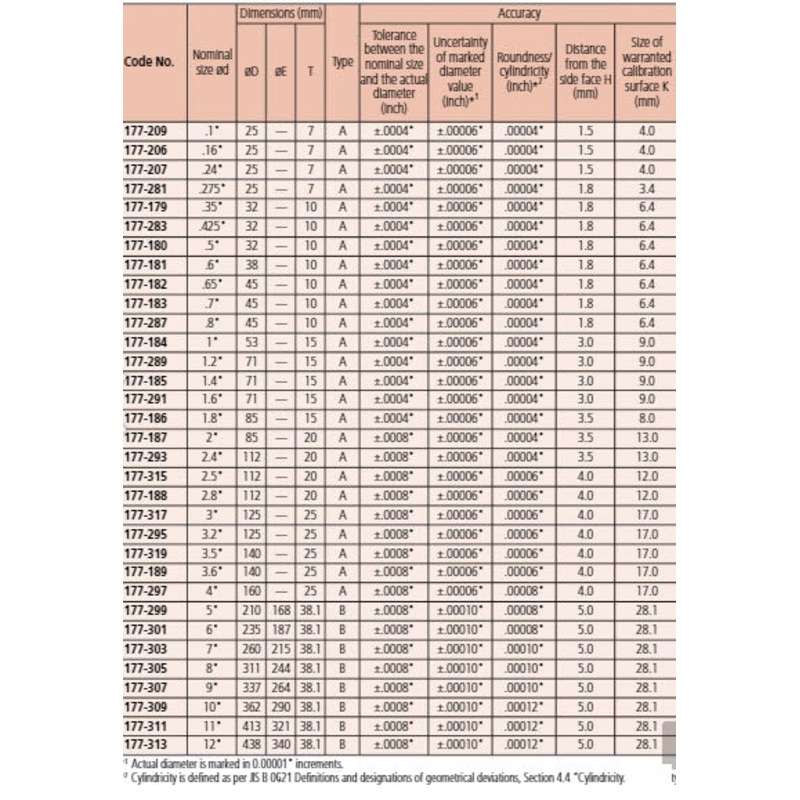

The Mitutoyo 177-184 Steel Setting Ring has the following specifications:
- Nominal Size: 1.000
- Tolerance Between Nominal and Actual Diameter: +/- .0004
- Uncertainty of Marked Diameter Value: +/- .00006
- Roundness/Cylindricity: .00004
- Distance from the Side Face (H): 3mm
- Side of Warranted Calibration Surface (K): 9mm
- Outside Diameter: 53mm
- Thickness: 15mm
- Type: A
