Description

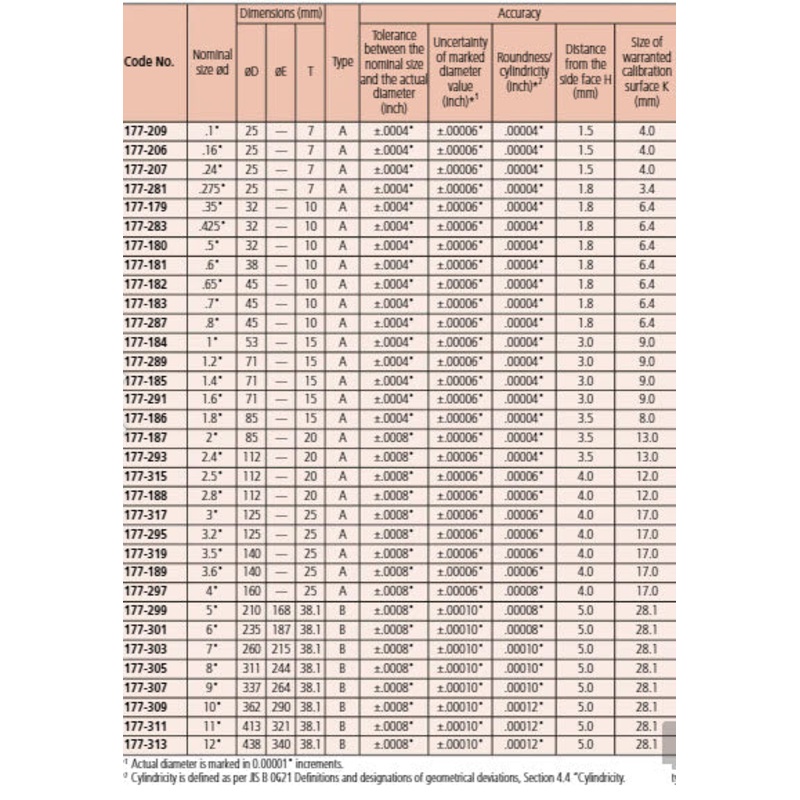

The Mitutoyo 177-281 Steel Setting Ring
- Type: A
- Nominal Size: .275
- Tolerance Between Nominal and Actual Diameter: +/- .0004
- Uncertainty of Marked Diameter Value: +/- .00006
- Roundness/Cylindricity: .00004
- Distance from the Side Face (H): 1.80mm
- Side of Warranted Calibration Surface (K): 3.40mm
- Outside Diameter: 25mm
- Thickness: 7.00mm
