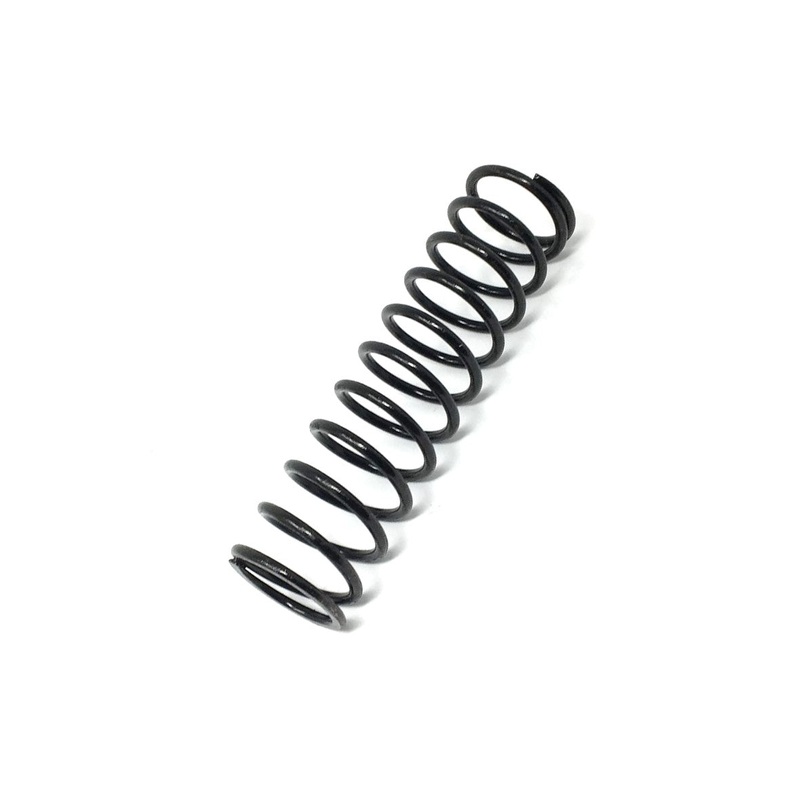

Sensus Springs for 243-12 & 243-8 Regulators

Description

USE THE TECHNICAL CHART AND LITERATURE BELOW TO DETERMINE THE SPECIFICATIONS YOU REQUIRE.

BULK ORDERS AND LESS COMMON PRODUCTS MAY REQUIRE ADDITONAL TIME FOR SHIPMENT.CONTACT USVIA PHONE OREMAILTO REQUEST MORE INFORMATION ON AVAILABILITY.

MORE OPTIONS AVAILABLE. PLEASE CALL OR EMAIL US FOR FURTHER INFORMATION

Available Models:

Spring Color 243-12 Outlet Pressure Range 243-8 Outlet Pressure Range Part Number Red-Black 3″ to 6″ w.c. 143-82-021-00 Blue-Black 5″ to 8″ w.c. 143-82-021-01 Green-Black 6″ to 14″ w.c. 143-82-021-02 Red 3″ to 6″ w.c. 143-16-021-03 Blue 5″ to 8″ w.c. 143-16-021-04 Green 6″ to 14″ w.c. 12″ to 28″ w.c. 143-16-021-05 Orange-Black 10″ to 18″ w.c. 143-16-021-11 Orange 12″ to 28″ w.c. 1 to 2 psi 143-16-021-06 Black 1 to 2 psi 2 to 4 psi 143-16-021-07 Cadmium 1 to 3 psi 3 to 5 psi 143-16-021-08 Cadmium 1 to 3 psi 3 to 6 psi * 143-16-021-08 Cadmium 6 to 10 psi * 143-16-021-08 White 6 to 10 psi * 143-16-021-13

White is nested inside Cadmium
*Model 243-8HP only
Model 243-8-2 (IRV) only

Accessory / Part For:

• Sensus 243-8 Gas Pressure Regulator
• Sensus 243-12 Gas Pressure Regulator

Also See:

• SensusOrifices for 243-12 & 243-8 Regulators
• Sensus 10 Degree Valve Pocket for 243-12 and 243-8 Regulators
• Sensus 30 Degree Valve Pocket for 243-12 and 243-8 Regulators
• Sensus 143-16-102-00 Clamping Plate for 243-12-2
• Sensus Regulator Body for 243-8 and 243-12 Regulators
• Sensus 143-16-005-00 Cap and O-Ring for 243-12-2 and 243-8-2 Regulators
• Sensus QR-S Damping Device for 243-8 & 243-12 Regulators

Resources:

• Sensus 243 Model Technical Literature
• Sensus 243 Installation Instructions
• Sensus 243 Parts List
