Description

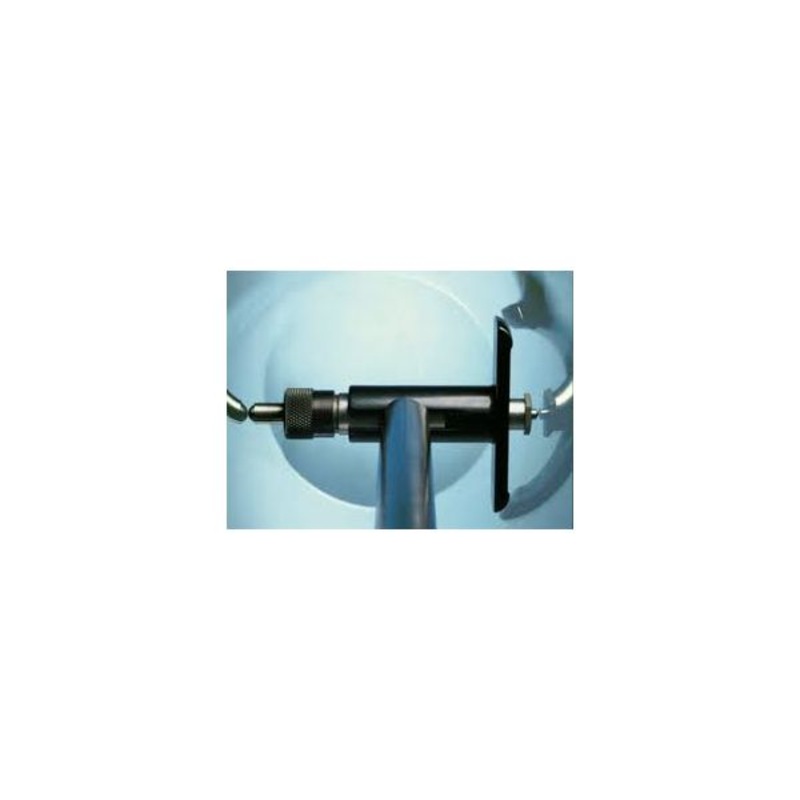

Schwenk SU Precision bore gauge.
Self-centring two-point dial bore gauge with spring-loaded centering disc.
Transmission of the contact point travel is via a ring segment.
Fixed, exchangeable measuring pins can be set to different Diameters.
Carbide-tipped point. Gauge holder with hand and ambient temperature protection.
Fixed measuring pins of steel.
Application:
For precise measuring of bores Diameters also can measure roundness, and cylindricity as well as internal profiles
Schwenk 10700000 Dial Bore Gauges type SU Metric Range 50-150mm with steel pins, Without Indicator. Measuring depth 180mm, 11 anvils
- Repeatability of measured values < 0.5m (>280mm <1.5m)
- Dial mounting hole 8mm
