Scanstrut Flip Pro Duo – USB-A USB-C w/12V Power Socket [SC-MULTI-F2]

Description

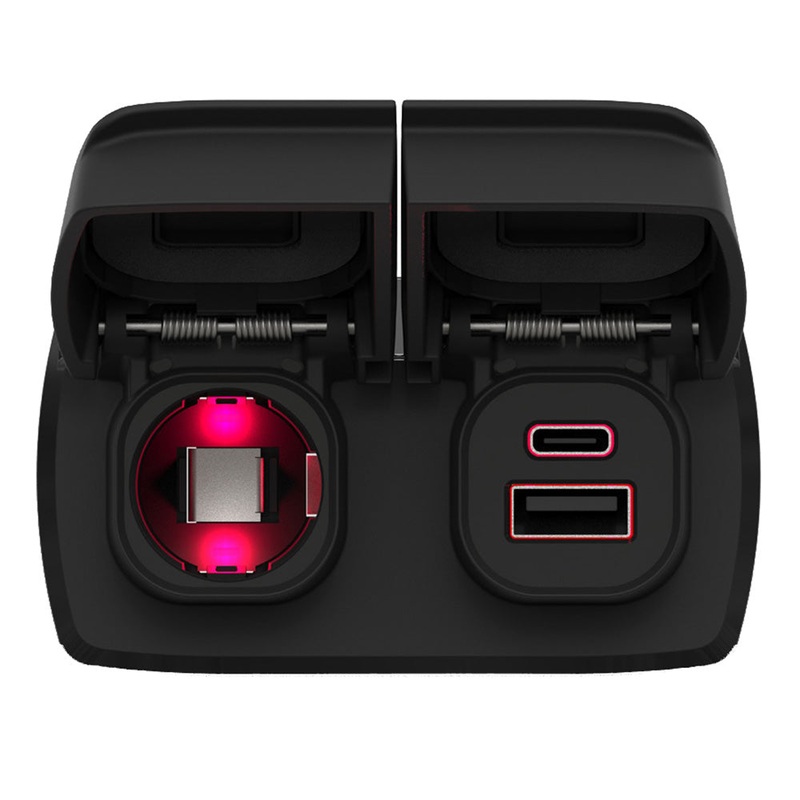

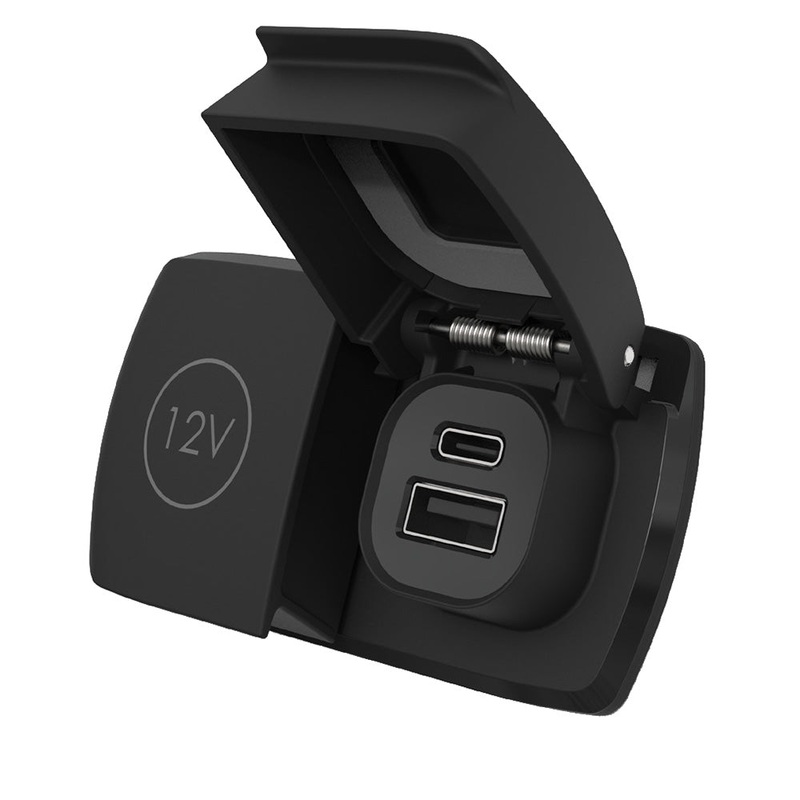

Flip Pro Duo – USB-A & USB-C with 12V Power Socket

Combining the features of the high-power Flip Pro USB-A / C charger and 12V power sockets into a beautiful multi-power solution. When not in use, the spring-loaded caps remain tightly closed, protecting the ports from the elements.

Universal:

• Universal fit for any USB-A & C connectors
• Fast charge (60W max) up to 2 devices at a time

Marine Ready:

• IPX4 waterproof with the cover closed
• UV resistant
• 316 stainless steel hinge and spring

Installation:

• Easy Install, using a standard 32mm (1.25 in.) hole saw

Specifications:

• Watt Max. Power: 120 -150W max power, 12V system only (12V Socket)
• Input Voltage: 10-32V DC
• Input Current Max: 6A (10A fuse recommended)
• Output Type C (12V System): 5V 3A, 9V 3A, and 12V 3A MAX
• Output Type C (24V System): 5V 3A, 9V 3A, 12V 3A, 15V 3A, and 20V 3A MAX
• Output Type A Max: 5V 1.5A, 9V 1.5A, and 12V 1.5A/3A MAX
• Waterproof Rating: IPX4
• Standby Draw: 0.01W
• Certification: CE, FCC, UKCA, C-Tick, and ROHS

Quick Guide (pdf)
