Description
BULK ORDERS MAY REQUIRE ADDITONAL TIME FOR SHIPMENT.CONTACT USVIA PHONE OREMAILTO REQUEST MORE INFORMATION ON AVAILABILITY, AND FOR PART NUMBERS NOT LISTED
MORE OPTIONS AVAILABLE. PLEASE CALL OR EMAIL US FOR FURTHER INFORMATION

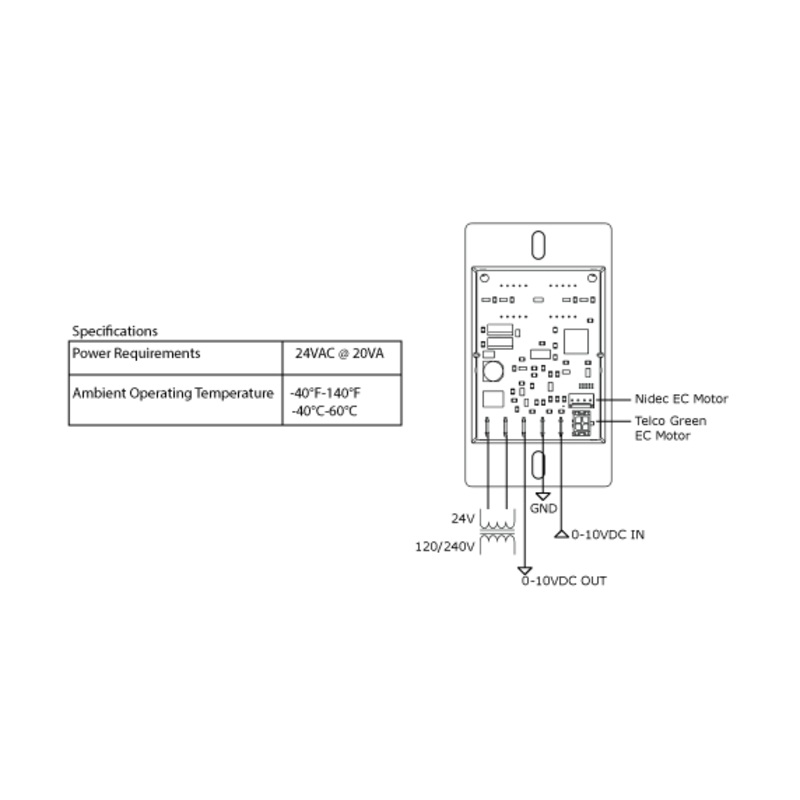

Overview:
- Two EC Motor connections with modulating outputs
- RPM feedback
- 0-10V DC input
Programmable
- Programmable low speed and high speed limits
- Motor Selection
- Option to use remote
Normal Operation and Installation
- Simple five button interface
- Four digit LED display
