Description

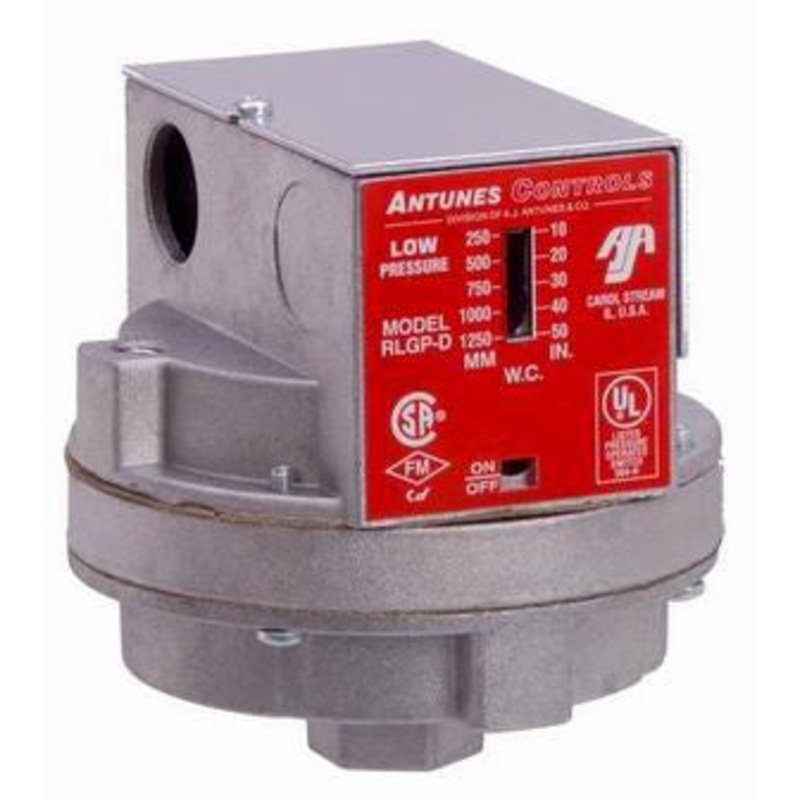

Low gas pressure switch with adjustable setpoint and automatic DPDT reset mechanism to trip at falling pressure conditions and reset automatically when conditions return to setpoint
Available Pressure Ranges:
- 2-14″ WC (50-350mm) 803114101 RLGP-D 2-14
- 10-50″ WC (250-1250mm) 803114102 RLGP-D 10-50
Features and Specifications:
- Manufactured byCrossroads Controls, formerly by Antunes Controls
- Rugged Die-Cast Aluminum Housing
- Two circuit controleach setpoint controls two independent, dry contacts to switch to different voltages
- Approvals:UL, FM, CSA
- Electrical Ratings:
- 10A, 1/8HP @ 125 VAC.;
- 5A, 1/4 HP @ 250 VAC.;
- Pilot Duty, 125 VA @ 125-250 VAC.
- Max Surge Pressure:10 PSI Max
- Max Ambient Temperature:140F / 60C
- Min. Ambient Temperature:-40F / -40C
- Connections:1/4″NPT Gas inlet, 1/8″NPT Gas vent
Accessories:
- Single Switch Mounting Bracket
Resources:
- Crossroads Controls Model D Gas Pressure Switch Datasheet
- Crossroads Controls Model D Gas Pressure SwitchInstallation Instructions
- Former Antunes Controls Literature:
- Model D Gas Pressure Switch Datasheet
- Model D Gas Pressure Switch Installation Instructions
