Ritchie SR-2 Venture Sail Boat Compass – Bulkhead Mount – Black [SR-2]

Description

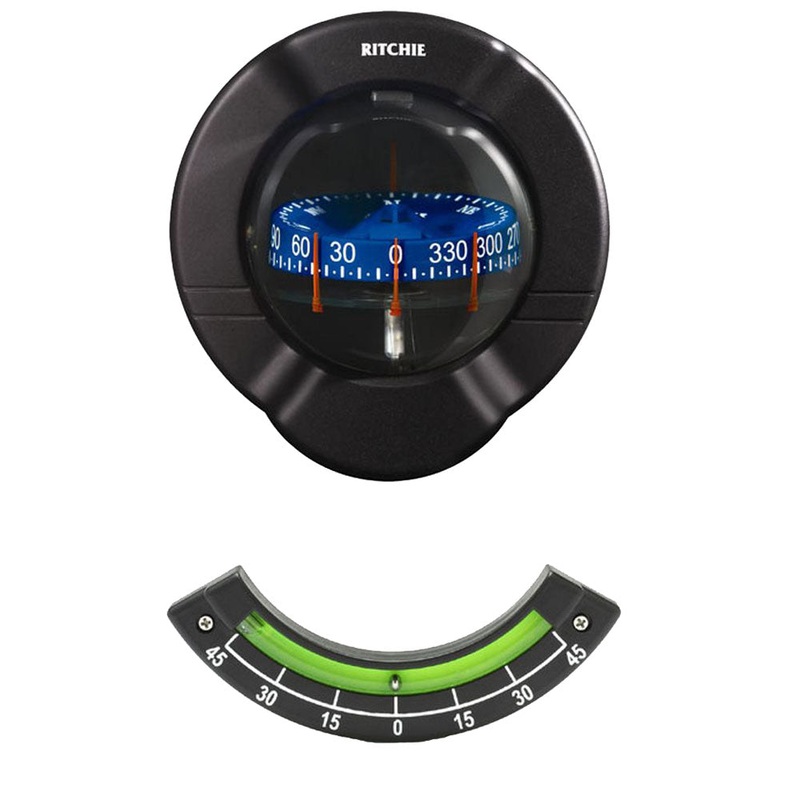

Venture Bulkhead Combidial Compass

The Venture SR-2 is designed primarily for sailboats 16′ (4.88M) to 36′ (10.68M) in length.

Features:

• 3 3/4 (95 mm) CombiDial

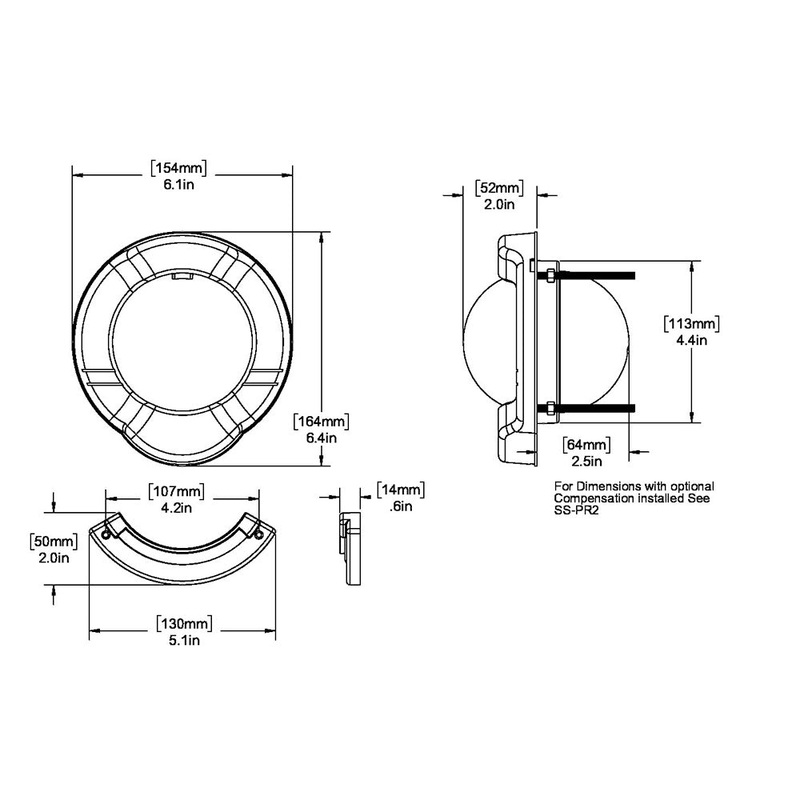

• 4 5/8 (118 mm) to 4 13/16 (122 mm) mounting hole
• Vertical Mounting Angle Through 40 Degrees.
• Blue LED Night Lighting (12 24 Volts)
• Protective Front and Back Covers Included
• Exclusive 5-Year Ritchie Warranty
• Wheelmark Certified

Specifications:

• Approx. Shipping Weight: 2 lb. (907g)
• Notes: 12/24v lighting is standard

Specifications:

• Read: Both
• Mounting Style: Bulkhead
• Backlight: Yes
• Lubber Lines: Yes
• Box Dimensions: 7″H x 8″W x 8″L WT: 2.5 lbs
• UPC: 010342110008

Quick Guide (pdf)
Owner’s Manual (pdf)
